Eapearl Chemical
Triethylene Glycol Monobutyl Ether — label CAS 143-22-6

Triethylene glycol monobutyl ether

TEB

CAS 143-22-6 EC 205-592-6 C10H22O4 Ether SDS published CLP Danger
MolGod_SDSCARD_1
REACH 2020/878
v2 · 08.09.2026

Specification

Product NameTriethylene glycol monobutyl ether
Other NamesTEB
CAS No.143-22-6
EINECS No.205-592-6
MFC10H22O4
Molecular weight206.28
Purity98.0%

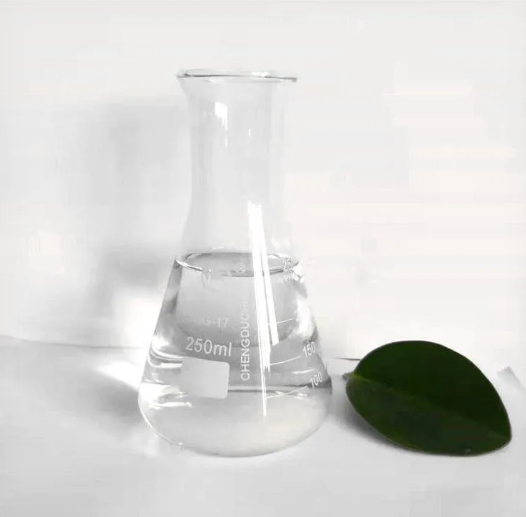

AppearanceColorless liquid
Density0.990 g/mL at 20 °C (lit.)
Melting point-48°C
Boiling point265-350 °C (lit.)
Flashing point156°C

Values are typical for the standard grade. Tighter specifications are available — state the target in your inquiry and we confirm against the production batch.

Hazard classification

GHS pictogram GHS05 — Corrosive

Danger

Harmonised classification (EU) — ECHA Annex VI (harmonised, ATP 23; 2026-07-07)

  • H318 Causes serious eye damage
Full safety data sheet CLP label (EN)

European Chemicals Agency. "2-[2-(2-butoxyethoxy)ethoxy]ethanol; TEGBE; triethylene glycol monobutyl ether; butoxytriethylene glycol, Index No. 603-183-00-0." In Table 3 of Annex VI to Regulation (EC) No 1272/2008 (CLP Regulation), 23rd Adaptation to Technical Progress (harmonised list as of 2026-07-07). Helsinki: European Chemicals Agency, 2026. https://echa.europa.eu/information-on-chemicals/annex-vi-to-clp.

Substance identity verified against the registry entry on 2026-09-02.

Packaging and shipping

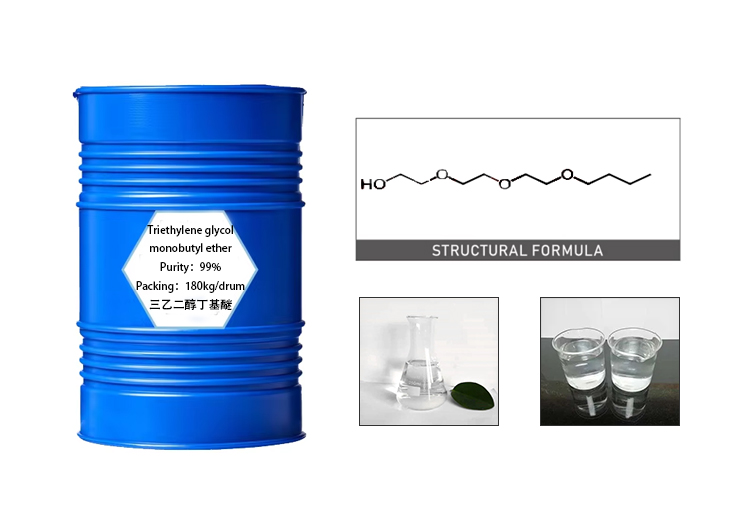

Drum180 kg
IBC Drum1127 kg
ISO tank (20ft)24–26 m³
ISO tank (40ft)48–50 m³
Triethylene glycol monobutyl ether
Triethylene glycol monobutyl ether
Triethylene glycol monobutyl ether
Triethylene glycol monobutyl ether

Triethylene glycol monobutyl ether also known as Butyl Triglycol, is an important member of the ethylene glycol ether family. Compared with 2-ethylolpropane butyl ether (butyl carbomer), its molecular chain is longer, thus possessing a higher boiling point, lower volatility, and stronger hydrophobicity. It is an ideal choice for applications that require long-lasting effects, stable performance at high temperatures, and deep penetration.

Triethylene glycol monobutyl ether (TEB) ultra-high molecular weight and high boiling point solvent, providing ultra-resistant coatings, long-lasting cleaningTriethylene glycol monobutyl ether (TEB) ultra-high molecular weight and high boiling point solvent, providing ultra-resistant coatings, long-lasting cleaningTriethylene glycol monobutyl ether (TEB) ultra-high molecular weight and high boiling point solvent, providing ultra-resistant coatings, long-lasting cleaning

Triethylene glycol monobutyl ether (TEB) ultra-high molecular weight and high boiling point solvent, providing ultra-resistant coatings, long-lasting cleaning

Product Description

Anhui Eapearl Chemical Co., Ltd., as a professional manufacturer of alcohol ether solvents and specialty chemicals in China, is committed to providing customers with high-quality and high-performance chemical raw materials. Currently, we are steadily supplying butyl triglycol (butyl triglycol), a type of ultra-high boiling point, low volatility, and strong dissolving power multi-functional alcohol ether solvent, to the market. With its unique molecular structure (three ether link units and one hydroxyl group), this product demonstrates outstanding value in numerous industrial fields with strict requirements for solvent performance.

Butyl triglycol, also known as butyl triglycol, is an important member of the ethylene glycol ether family. Compared with butyl carbolic acid glycol (butyl diacetyl glycol), its molecular chain is longer, thus having a higher boiling point, lower volatility, and stronger hydrophobicity. It is an ideal choice for those seeking long-lasting effects, stable high-temperature processes, and deep penetration applications.

High boiling point and extremely low volatility: The boiling point is far beyond that of conventional solvents (>260°C), and the evaporation rate is extremely slow, providing an extremely long leveling time for the coating and ensuring that cleaning agents, processing fluids, etc. maintain stable performance during high-temperature or long-duration processes.

Excellent dissolution and coupling ability: It has excellent dissolution power for resins, oils, dyes, nitrocellulose, etc., and can effectively couple the aqueous phase with the oil phase, improving the compatibility of complex formulations.

Outstanding surface activity and wetting ability: It can effectively reduce surface tension, enhance the spreading and penetration ability of the formulation on various substrates, and is particularly suitable for cleaning agents and textile treatment agents.

Good chemical stability and safety: It is stable at normal temperature and pressure and has good compatibility with many chemicals. Its relatively low acute toxicity (rat oral LD50: 5300 mg/kg) makes it have good safety for use under standard operations.

 Main application fields

High-end coatings and inks: As an ultra-high boiling point solvent and film-forming aid, it is used in industrial baking paints, automotive paints, ship coatings, and high-end inks, significantly improving leveling, preventing scuffing, enhancing gloss and adhesion, especially suitable for systems requiring high-temperature baking or slow drying.

Efficient industrial cleaning and metal processing: It is a powerful solvent for heavy oil stains, paint, and soldering agent residues, used for metal degreasing, precise cleaning of electronic components (such as integrated circuits), and industrial equipment maintenance cleaning. Its long-lasting nature is suitable for scenarios such as shutdown maintenance and overhaul.

Agricultural chemicals: Used as an efficient dispersant and solvent for pesticides, improving the spread and adhesion of the liquid formulation on leaves, enhancing the efficacy of the pesticide.

Polymer processing and synthesis: As a resin plasticizer and processing aid, it is used to improve the processing fluidity and flexibility of plastics and rubber; at the same time, it can be used as a reaction intermediate or solvent in organic synthesis.

Daily chemical products and textiles: Used for preparing mild and non-irritating household liquid detergents; in the textile industry, it is used as a fiber wetting agent and dye carrier.

Emerging and special fields: In electronic chemicals, it is used for PCB process cleaning; in the synthesis of nanomaterials (such as superparamagnetic iron oxide nanoparticles), it is used as a reaction solvent; it can also be used in special applications such as CO₂ capture.

Product Specifications and Packaging

Typical Specifications: Industrial grade purity ≥ 98.0% (GC), moisture content ≤ 0.1%. Customized specifications and higher purity products can be provided according to customer requirements.

Packaging and Transportation: Standard packaging is 200 kilograms in a galvanized iron drum or an IBC ton barrel. We offer safe and standardized logistics services to ensure timely and intact delivery of the products.

Safety, Storage and Operating Instructions

Safety Information: This product is a flammable liquid and has irritant effects on eyes and skin (Danger Statement Code: H318). Appropriate personal protective equipment (such as chemical goggles, protective gloves) must be worn during operation, and it should be used in a well-ventilated environment.

Storage Recommendations: Store in a cool, ventilated, and dry warehouse, keeping the containers sealed. Keep away from heat sources, fire sources, and strong oxidants.

Leakage Handling: Absorb with inert adsorbent materials (such as sand) and dispose of the collected material in accordance with relevant regulations.

Anhui Eapearl Chemical Co., Ltd. adheres to stable product quality, professional technical support, and flexible supply services, becoming your reliable partner. The triethylene glycol monobutyl ether (butyl triglycerol) products we provide have stable performance, consistent batches, and can be widely applied in the above-mentioned high-end fields, helping your products enhance performance and competitiveness. If you need to obtain the detailed product technical data sheet (TDS) or safety data sheet (MSDS), please feel free to contact us at any time.

Triethylene glycol monobutyl ether (TEB) ultra-high molecular weight and high boiling point solvent, providing ultra-resistant coatings, long-lasting cleaning

Triethylene glycol monobutyl ether (TEB) ultra-high molecular weight and high boiling point solvent, providing ultra-resistant coatings, long-lasting cleaning

Delivery&Payment method

Triethylene glycol monobutyl ether (TEB) ultra-high molecular weight and high boiling point solvent, providing ultra-resistant coatings, long-lasting cleaning

Frequently asked

In what packaging is Triethylene glycol monobutyl ether shipped?

Standard formats are Drum (180 kg), IBC Drum (1127 kg), ISO tank (20ft) (24–26 m³), ISO tank (40ft) (48–50 m³). Other packaging can be arranged for full-container orders.

Is a safety data sheet available for Triethylene glycol monobutyl ether?

Yes. A full safety data sheet for CAS 143-22-6 is published and linked from this page; a signed copy is issued with the shipping documents.

What purity do you supply?

The standard grade is 98.0%. Tighter specifications are confirmed against the production batch before shipment.

Technical reading on Triethylene glycol monobutyl ether

TEB vs lighter glycol ethers: how to choose

TEB is classified for serious eye damage yet carries no flammability statement, and it stays in the film…

Article

TEB as a green solvent: substantiating the claim

Four different things suppliers mean by green, where butoxytriglycol sits on each, and the one claim about it…

Article

Related products

Dipropylene glycol monobutyl ether

Dipropylene glycol monobutyl ether

DPnB

CAS 29911-28-2 99.0% Ether SDS Warning
Dipropylene glycol dimethyl ether

Dipropylene glycol dimethyl ether

DMM

CAS 111109-77-4 99.0% Ether SDS Warning
Diethylene glycol monohexyl ether

Diethylene glycol monohexyl ether

hexyl caprolactone

CAS 112-59-4 99.0% Ether SDS Danger
🧬 3D Molecule Visualizer
Loading molecule...
3D model Triethylene glycol monobutyl ether, CAS 143-22-6, molecular formula C10H22O4, molar mass 206.28 g/mol

Data transcribed from regulatory registers and technical literature, with the source and edition stated. It does not replace the supplier's safety data sheet. Fields without a recorded source are marked as such.

📊 Physicochemical data — CAS 143-22-6MolGod_PROPHUB_MAIN
📊 Physicochemical properties

Quick Reference

Formula: C10H22O4
MW: 206.28 g/mol
CAS: 143-22-6
Appearance: Colorless liquid
Odour: Mild smelling

Detailed Properties

A supplement to the „Physicochemical properties (database)” table below — repeated values are shown only once.

Property Value Unit Conditions Source
Density (ρ) 0.9890 g/cu cm at 20 °C[1][2] Hazardous Substances Data Bank (HSDB) ↗
Melting Point (mp) Freezing point: -35.2 °C[1][2] Hazardous Substances Data Bank (HSDB) ↗
Boiling Point (bp) 278 °C[1][2] Hazardous Substances Data Bank (HSDB) ↗
Flash Point 143.3 °C (143 °C) (CLOSED CUP)[2] Hazardous Substances Data Bank (HSDB) ↗
Vapor Pressure 0.0025 [mmHg][1] Haz-Map, Information on Hazardous Chemicals and Occupational Diseases ↗
Water Solubility Very soluble in ethanol, methanol[2] Hazardous Substances Data Bank (HSDB) ↗
Viscosity (η) 9.2 centistokes at 25 °C[2] Hazardous Substances Data Bank (HSDB) ↗
Refractive Index (nD) Index of refraction = 1.4389 at 20 °C/D[1][2] Hazardous Substances Data Bank (HSDB) ↗
🔬 Advanced Properties

Chemical Identifiers

SMILES: CCCCOCCOCCOCCO
InChI: InChI=1S/C10H22O4/c1-2-3-5-12-7-9-14-10-8-13-6-4-11/h11H,2-10H2,1H3
InChIKey: COBPKKZHLDDMTB-UHFFFAOYSA-N

Data sources: Hazardous Substances Data Bank (HSDB), Haz-Map, Information on Hazardous Chemicals and Occupational Diseases

Last updated: unconfirmed

📚 Scientific references (Chicago Author-Date) (2 sources)
  1. PubChem. National Center for Biotechnology Information (NIH/NLM), chemical compound database. ↗ dotyczy: Density (ρ) · Melting Point (mp) · Boiling Point (bp) · Vapor Pressure · Refractive Index (nD)
  2. NLM. Hazardous Substances Data Bank (HSDB). National Library of Medicine. ↗ dotyczy: Density (ρ) · Melting Point (mp) · Boiling Point (bp) · Flash Point · Water Solubility · Viscosity (η) · Refractive Index (nD)
Chemical Overview: Triethylene glycol monobutyl etherMolGod_OVERVIEW_1
Molecular formulaC10H22O4[1]
Molecular weight206.28 g/mol[1]
LogP (lipophilicity)0.4[1]
IUPAC name2-[2-(2-butoxyethoxy)ethoxy]ethanol[1]
SMILESCCCCOCCOCCOCCO[1]
InChIKeyCOBPKKZHLDDMTB-UHFFFAOYSA-N[1]

Synonyms: TRIETHYLENE GLYCOL MONOBUTYL ETHER · 143-22-6 · Butoxytriglycol · 2-[2-(2-Butoxyethoxy)ethoxy]ethanol · Butyltriglycol

Data sources: PubChem (NLM/NIH)
Last updated: 2026-09-03

📚 Scientific references (Chicago Author-Date) (1 sources)
  1. PubChem. National Center for Biotechnology Information (NIH/NLM), chemical compound database. ↗ dotyczy: Molecular formula · Molecular weight · LogP (lipophilicity) · IUPAC name · SMILES · InChIKey
