Diethylene Glycol Monoethyl Ether — label CAS 111-90-0

Diethylene Glycol Monoethyl Ether

Kabichol

CAS 111-90-0 EC 203-919-7 C6H14O3 Ether SDS published CLP Danger
MolGod_SDSCARD_1
REACH 2020/878
v2 · 08.09.2026

Specification

Product NameThe diethylene glycol monooctyl ether
Other NamesKabichol
CAS No.111-90-0
EINECS No.203-919-7
MFC6H14O3
Molecular weight134.17
Purity99.0%

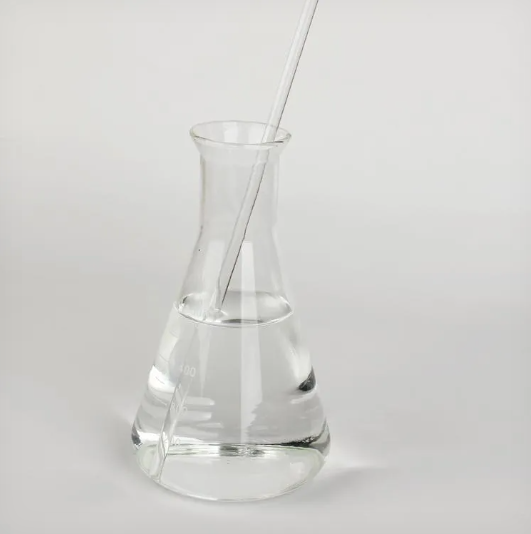

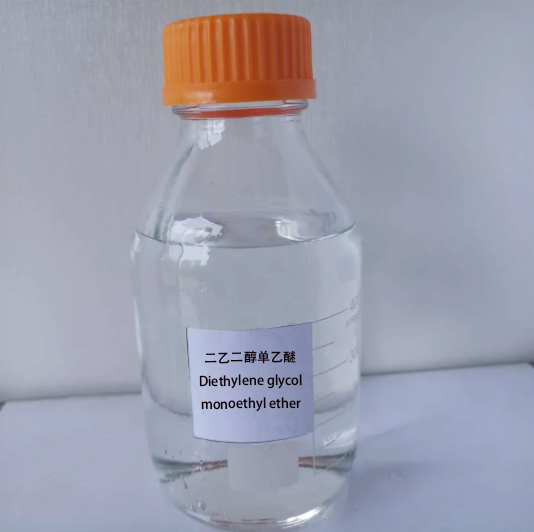

AppearanceColorless liquid
Density0.999g/mLat 25°C (lit.)
Melting point-80 °C
Boiling point202°C (lit.)
Flashing point205°F

Values are typical for the standard grade. Tighter specifications are available — state the target in your inquiry and we confirm against the production batch.

Hazard classification

GHS pictogram GHS08 — Health hazard

Danger

Classification source — PubChem C&L (consensus filter, not harmonised)

No harmonised entry exists for this substance; the classification shown is the supplier consensus reported to ECHA and should be confirmed for your intended use.

  • H227 Combustible liquid
  • H320 Causes eye irritation
  • H372 Causes damage to organs through prolonged or repeated exposure
Precautionary statements (1)
  • P210 Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking
Full safety data sheet CLP label (EN)

Substance identity verified against the registry entry on 2026-09-02.

Packaging and shipping

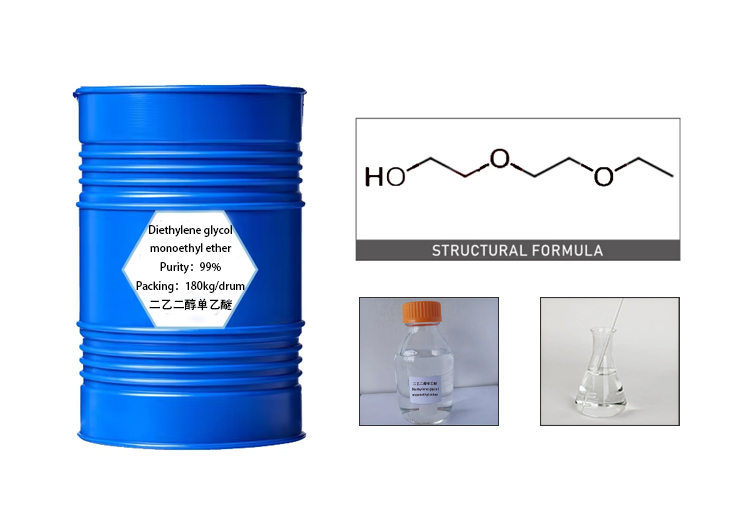

Drum180 kg
IBC Drum1127 kg
ISO tank (20ft)24–26 m³
ISO tank (40ft)48–50 m³
Diethylene Glycol Monoethyl Ether
Diethylene Glycol Monoethyl Ether
Diethylene Glycol Monoethyl Ether
Diethylene Glycol Monoethyl Ether

The diethylene glycol monooctyl ether (Kabichol) is an important member of the ethylene glycol ether family. It is a solvent with balanced performance, high boiling point and low volatility. Its molecular structure endows it with excellent hydrophilicity and lipophilicity, and it has strong solubilization and coupling capabilities for various resins, oils and active ingredients. Compared with other highly volatile solvents, carbomer has lower toxicity, higher flash point and milder odor. It is one of the ideal choices to meet the increasingly strict environmental protection and safety production regulations at present.

The diethylene glycol monooctyl ether (Kabichol) multi-functional high-boiling-point solvent solution provides support for applications in various industries such as coatings, cleaning,The diethylene glycol monooctyl ether (Kabichol) multi-functional high-boiling-point solvent solution provides support for applications in various industries such as coatings, cleaning,The diethylene glycol monooctyl ether (Kabichol) multi-functional high-boiling-point solvent solution provides support for applications in various industries such as coatings, cleaning,

The diethylene glycol monooctyl ether (Kabichol) multi-functional high-boiling-point solvent solution provides support for applications in various industries such as coatings, cleaning,

Product Description

Anhui Eapearl Chemical Co., Ltd., as a leading producer and solution provider of alcohol ether solvents in China, with its mature and stable production process, strict quality management system and complete supply chain network, is now continuously supplying the market with high-performance diethylene glycol monooctyl ether (Kabirul). We are committed to transforming this multi-functional and environmentally friendly solvent, which has high boiling point, excellent solubility, low volatility and good safety, into a reliable foundation for customers in the coatings, cleaning, agrochemical and personal care industries to achieve product performance optimization and green upgrading.

Product Core Positioning

Diethylene glycol monooctyl ether (commonly known as carbomer) is an important member of the ethylene glycol ether family. It is a solvent with balanced performance, high boiling point and low volatility. Its molecular structure endows it with excellent hydrophilicity and lipophilicity, and it has strong solubilization and coupling capabilities for various resins, oils and active ingredients. Compared with other highly volatile solvents, carbomer has lower toxicity, higher flash point and milder odor. It is one of the ideal choices to meet the increasingly strict environmental protection and safety production regulations at present.

High-performance coatings and inks: As efficient high-boiling-point solvents and leveling agents, carbomer can effectively dissolve various resins. Its slow-drying property can significantly improve the leveling, gloss, and anti-splatter properties of the coating film, reduce surface defects, and is widely used in high-solid-content coatings, industrial enamels, automotive coatings, inkjet inks, resin synthesis, and other fields.

Powerful industrial and household cleaning agents: With strong solubility for stubborn dirt such as grease, wax, and resins and long-lasting contact time due to high boiling point, it is a key active component for preparing heavy oil stain cleaning agents, degreasers, paint removers, and hard surface cleaners. The cleaning effect is remarkable, and the use is relatively safe.

Agricultural chemical formulations: As an efficient solvent, emulsifier, and penetration aid, carbomer can enhance the solubility of pesticide active ingredients and the stability of formulations, and effectively improve the wetting, spreading, and penetration ability of the pesticide solution on the target surface, thereby enhancing the efficacy. It is often used in emulsions, water emulsions, and other formulations.

Daily-use chemicals and personal care: In the formula, it serves as an excellent coupling agent, solvent, and moisturizer, which can stabilize the solubilization of fragrances, essential oils, and various active substances, improve the homogeneity of the system, and give personal care products and liquid detergents good skin feel and stability.

Printing and special chemicals: It can be used in solvent-based printing inks, ballpoint pen inks, and dyes, as a high-boiling-point solvent, to help regulate the drying speed, improve printing adhesion and color performance.

Stable and reliable quality: We adopt standardized production processes and full-process quality control to ensure that the key indicators such as purity, color, and moisture of the products are stable and consistent, meeting the strict requirements of continuous production.

High cost-effectiveness and stable supply: Relying on large-scale production and efficient supply chain management, we provide customers with competitive market prices and long-term, stable, and timely supply guarantees, making us a reliable bulk partner.

Professional technical support and services: Our technical team can provide product selection, application suggestions, and basic technical data support to assist you in optimizing the formula and solving common problems in production processes.

Safe and compliant delivery guarantee: We provide complete, standardized product safety technical specifications (MSDS) and packaging and logistics solutions in line with hazardous material transportation regulations to ensure the compliance and safety of the product from production to use throughout the process.

Anhui Eapearl  Chemical Co., Ltd., with the classic alcohol ether solvent series represented by carbomer, has always been committed to providing stable quality, professional services, and complete supply, becoming a reliable partner for a wide range of customers. We look forward to working with you to create value together.

The diethylene glycol monooctyl ether (Kabichol) multi-functional high-boiling-point solvent solution provides support for applications in various industries such as coatings, cleaning,

The diethylene glycol monooctyl ether (Kabichol) multi-functional high-boiling-point solvent solution provides support for applications in various industries such as coatings, cleaning,

Delivery&Payment method

The diethylene glycol monooctyl ether (Kabichol) multi-functional high-boiling-point solvent solution provides support for applications in various industries such as coatings, cleaning,

Frequently asked

In what packaging is diethylene glycol monooctyl ether shipped?

Standard formats are Drum (180 kg), IBC Drum (1127 kg), ISO tank (20ft) (24–26 m³), ISO tank (40ft) (48–50 m³). Other packaging can be arranged for full-container orders.

Is a safety data sheet available for diethylene glycol monooctyl ether?

Yes. A full safety data sheet for CAS 111-90-0 is published and linked from this page; a signed copy is issued with the shipping documents.

What purity do you supply?

The standard grade is 99.0%. Tighter specifications are confirmed against the production batch before shipment.

Related products

Dipropylene glycol mono propyl ether

Dipropylene glycol mono propyl ether

DPhP

CAS 35884-42-5 99.9% Ether SDS
Ethylene glycol dimethyl ether

Ethylene glycol dimethyl ether

C4H10O2 · 90.12 g/mol · specification on request

CAS 110-71-4 Ether Danger
Tripropylene glycol monobutyl ether

Tripropylene glycol monobutyl ether

TPhB

CAS 55934-93-5 99.9% Ether SDS
🧬 3D Molecule Visualizer
Loading molecule...
3D model Diethylene Glycol Monoethyl Ether, CAS 111-90-0, molecular formula C6H14O3, molar mass 134.17 g/mol

Data transcribed from regulatory registers and technical literature, with the source and edition stated. It does not replace the supplier's safety data sheet. Fields without a recorded source are marked as such.

📊 Physicochemical data — CAS 111-90-0MolGod_PROPHUB_MAIN
📊 Physicochemical properties

Quick Reference

Formula: C6H14O3
MW: 134.17 g/mol
CAS: 111-90-0
Appearance: Colorless liquid
Odour: Mild, pleasant odor

Detailed Properties

A supplement to the „Physicochemical properties (database)” table below — repeated values are shown only once.

Property Value Unit Conditions Source
Density (ρ) 0.99 at 20 °C (USCG, 1999) - Less dense than water; will float[1] CAMEO Chemicals ↗
Melting Point (mp) -77.8 °C (NTP, 1992) CAMEO Chemicals ↗
Boiling Point (bp) 202.2 °C at 760 mmHg (NTP, 1992) CAMEO Chemicals ↗
Flash Point 96.1 °C (NTP, 1992) CAMEO Chemicals ↗
Vapor Pressure 0.13 mmHg at 25 °C (NTP, 1992)[1] CAMEO Chemicals ↗
Water Solubility greater than or equal to 100 mg/mL at 20 °C (NTP, 1992) CAMEO Chemicals ↗
Viscosity (η) 3.85 mPa.s (=cPs) at 25 °C[1][2] Hazardous Substances Data Bank (HSDB) ↗
Refractive Index (nD) Index of refraction: 1.4273 at 20 °C/D[1][2] Hazardous Substances Data Bank (HSDB) ↗
🔬 Advanced Properties

Chemical Identifiers

SMILES: CCOCCOCCO
InChI: InChI=1S/C6H14O3/c1-2-8-5-6-9-4-3-7/h7H,2-6H2,1H3
InChIKey: XXJWXESWEXIICW-UHFFFAOYSA-N

Data sources: CAMEO Chemicals, Hazardous Substances Data Bank (HSDB)

Last updated: unconfirmed

📚 Scientific references (Chicago Author-Date) (2 sources)
  1. PubChem. National Center for Biotechnology Information (NIH/NLM), chemical compound database. ↗ dotyczy: Density (ρ) · Vapor Pressure · Viscosity (η) · Refractive Index (nD)
  2. NLM. Hazardous Substances Data Bank (HSDB). National Library of Medicine. ↗ dotyczy: Viscosity (η) · Refractive Index (nD)
Chemical Overview: Diethylene Glycol Monoethyl EtherMolGod_OVERVIEW_1
Molecular formulaC6H14O3[1]
Molecular weight134.17 g/mol[1]
LogP (lipophilicity)-0.5[1]
IUPAC name2-(2-ethoxyethoxy)ethanol[1]
SMILESCCOCCOCCO[1]
InChIKeyXXJWXESWEXIICW-UHFFFAOYSA-N[1]

Synonyms: Diethylene glycol monoethyl ether · 111-90-0 · 2-(2-Ethoxyethoxy)ethanol · CARBITOL · Transcutol

Data sources: PubChem (NLM/NIH)
Last updated: 2026-09-02

📚 Scientific references (Chicago Author-Date) (1 sources)
  1. PubChem. National Center for Biotechnology Information (NIH/NLM), chemical compound database. ↗ dotyczy: Molecular formula · Molecular weight · LogP (lipophilicity) · IUPAC name · SMILES · InChIKey

SCIENTIFIC RESEARCH

[1]PubMed2024
Skin Penetration and Permeation Properties of Transcutol(®) in Complex Formulations.
Musakhanian J, Osborne DW, Rodier JD. (2024). "Skin Penetration and Permeation Properties of Transcutol(®) in Complex Formulations.". AAPS PharmSciTech. https://doi.org/10.1208/s12249-024-02886-8
Go to full study ↗
[2]PubMed2024
An Advanced Twin-Screw Granulation Technology: The use of Non-Volatile Solvents with High Solubilizing Capacity.
Kolipaka SS, Junqueira LA, Ross S et al.. (2024). "An Advanced Twin-Screw Granulation Technology: The use of Non-Volatile Solvents with High Solubilizing Capacity.". AAPS PharmSciTech. https://doi.org
Go to full study ↗
[3]PubMed2022
Review of Pharmaceutical Applications of Diethylene Glycol Monoethyl Ether.
Hashemzadeh N, Jouyban A. (2022). "Review of Pharmaceutical Applications of Diethylene Glycol Monoethyl Ether.". Journal of pharmacy & pharmaceutical sciences : a publication of the Canadian Society f
Go to full study ↗
[4]PubMed2018
Skin Penetration and Permeation Properties of Transcutol®-Neat or Diluted Mixtures.
Osborne DW, Musakhanian J. (2018). "Skin Penetration and Permeation Properties of Transcutol®-Neat or Diluted Mixtures.". AAPS PharmSciTech. https://doi.org/10.1208/s12249-018-1196-8
Go to full study ↗
[5]PubMed2014
A review of the nonclinical safety of Transcutol®, a highly purified form of diethylene glycol monoethyl ether (DEGEE)…
Sullivan DW Jr, Gad SC, Julien M. (2014). "A review of the nonclinical safety of Transcutol®, a highly purified form of diethylene glycol monoethyl ether (DEGEE) used as a pharmaceutical excipient.".
Go to full study ↗
[6]PubMed2011
Diethylene glycol monoethyl ether: an emerging solvent in topical dermatology products.
Osborne DW. (2011). "Diethylene glycol monoethyl ether: an emerging solvent in topical dermatology products.". Journal of cosmetic dermatology. https://doi.org/10.1111/j.1473-2165.2011.00590.x
Go to full study ↗
[7]PubMed1997
Reproductive toxicology. Diethylene glycol monoethyl ether.
(1997). "Reproductive toxicology. Diethylene glycol monoethyl ether.". Environmental health perspectives.
Go to full study ↗
📚 Scientific references (Chicago Author-Date) 6 refs · 1 baz

MOLECULE Per-CAS bibliography (live from 13+ databases)

Sources: db:pubmed (7)

  1. db:pubmed Musakhanian J, Osborne DW, Rodier JD. (2024). "Skin Penetration and Permeation Properties of Transcutol(®) in Complex Formulations.". AAPS PharmSciTech. https://doi.org/10.1208/s12249-024-02886-8 →
  2. db:pubmed Kolipaka SS, Junqueira LA, Ross S et al.. (2024). "An Advanced Twin-Screw Granulation Technology: The use of Non-Volatile Solvents with High Solubilizing Capacity.". AAPS PharmSciTech. https://doi.org/10.1208/s12249-024-02890-y →
  3. db:pubmed Hashemzadeh N, Jouyban A. (2022). "Review of Pharmaceutical Applications of Diethylene Glycol Monoethyl Ether.". Journal of pharmacy & pharmaceutical sciences : a publication of the Canadian Society for Pharmaceutical Sciences, Societe canadienne des sciences pharmaceutiques. https://doi.org/10.18433/jpps32921 →
  4. db:pubmed Osborne DW, Musakhanian J. (2018). "Skin Penetration and Permeation Properties of Transcutol®-Neat or Diluted Mixtures.". AAPS PharmSciTech. https://doi.org/10.1208/s12249-018-1196-8 →
  5. db:pubmed Sullivan DW Jr, Gad SC, Julien M. (2014). "A review of the nonclinical safety of Transcutol®, a highly purified form of diethylene glycol monoethyl ether (DEGEE) used as a pharmaceutical excipient.". Food and chemical toxicology : an international journal published for the British Industrial Biological Research Association. https://doi.org/10.1016/j.fct.2014.06.028 →
  6. db:pubmed (1997). "Reproductive toxicology. Diethylene glycol monoethyl ether.". Environmental health perspectives.
Regulatory status of the substance
This substance is subject to regulatory requirements: hazardous waste management (BDO register). Details in the \"Regulatory Status (REACH/ECHA/CLP)\" section and on the SDS. Regulatory information — does not restrict purchase in this store.
🧮 Stoichiometry CalculatorMolGod_STOICH_1
🧪 Chemical DataMolGod_CHEMDATA_1
CAS Number
111-90-0
Molecular formula
C6H14O3
Molar mass
134.17 g/mol
IUPAC name (EN)
2-(2-ethoxyethoxy)ethanol
SMILES
CCOCCOCCO
InChIKey
XXJWXESWEXIICW-UHFFFAOYSA-N
📚 Scientific literature (11 articles)MolGod_LITSCI_1
Filter:
Sort:
📈 Publication timeline
1990
2011
2014
2015
2019
2020
2021
2022
2023
2025
📡 Data sourcesMolGod_SOURCES_1

The data in this widget comes from the following verified scientific sources:

  • PubChem — National Center for Biotechnology Information (NCBI/NIH), USA
  • ChEMBL — European Bioinformatics Institute (EMBL-EBI), UK
  • NIST WebBook — National Institute of Standards and Technology, USA

Data is cached locally for speed — the widget also works offline.

⚗️ Physicochemical propertiesMolGod_PHYSTAB_2
Temp. wrzenia
202.1
Density
0.99

Source: PubChem, NIST WebBook. Last updated: date not confirmed

🔍 External identifiersMolGod_EXTID_1
12 of 16 ID systems75%
DatabaseIdentifierActions
CAS Registry Number111-90-0Open →
PubChem CID8146[1]Open →
InChIKeyXXJWXESWEXIICW-UHFFFAOYSA-N[1]Open →
InChIInChI=1S/C6H14O3/c1-2-8-5-6-9-4-3-7/h7H,2-6H2,1H…[1]
SMILESCCOCCOCCO[1]
EC Number203-919-7[2]Open →
ChEMBLCHEMBL1230841[3]Open →
KEGG CompoundD08904Open →
ChemSpider13839107[4]Open →
UNII (FDA)A1A1I8X02BOpen →
NSC Number (NCI)408451Open →
WikiData QIDQ416399Open →

Sources: PubChem (NIH), Wikidata SPARQL, KEGG, ChEMBL (EBI), CompTox CTX (EPA).

📚 Scientific references (Chicago Author-Date) (4 sources)
  1. PubChem. National Center for Biotechnology Information (NIH/NLM), chemical compound database. ↗ dotyczy: PubChem CID · InChIKey · InChI · SMILES
  2. ECHA. EC Inventory — EINECS, ELINCS, NLP and List Numbers assigned under REACH. Helsinki: European Chemicals Agency. ↗ dotyczy: EC Number
  3. ChEMBL. European Bioinformatics Institute (EMBL-EBI), bioactivity database. ↗ dotyczy: ChEMBL
  4. ChemSpider. Royal Society of Chemistry, chemical structure database. ↗ dotyczy: ChemSpider

Dalsza literatura

Publications thematically related to this CAS. They are not the source of any value given on this card.

Extended Bibliography (5)

  1. ★★☆☆☆ CROSSREF 🔓 OPEN ❓ unverified Anonymous. 1979. "DIETHYLENE GLYCOL MONOETHYL ETHER." Monographs on Fragrance Raw Materials: 303-304. https://doi.org/10.1016/b978-0-08-023775-6.50217-4. link [accessed: 2026-09-23] CC0 (metadata)
  2. ★★☆☆☆ CROSSREF 🔓 OPEN ❓ unverified Anonymous. "Diethylene Glycol Monoethyl Ether.". https://doi.org/10.31003/uspnf_m25440_03_01. link [accessed: 2026-09-23] CC0 (metadata)
  3. ★★☆☆☆ CROSSREF 🔓 OPEN ❓ unverified Anonymous. "Diethylene Glycol Monoethyl Ether.". https://doi.org/10.31003/uspnf_m25440_20101_01. link [accessed: 2026-09-23] CC0 (metadata)
  4. ★★☆☆☆ CROSSREF 🔓 OPEN ❓ unverified Anonymous. "Diethylene Glycol Monoethyl Ether.". https://doi.org/10.31003/uspnf_m25440_02_01. link [accessed: 2026-09-23] CC0 (metadata)
  5. ★★☆☆☆ CROSSREF 🔓 OPEN ❓ unverified Anonymous. "Hydrate Equilibrium Conditions for Water, Diethylene Glycol Monoethyl Ether Acetate, and Methane.". https://doi.org/10.1021/acs.jced.6b00642.s001. link [accessed: 2026-09-23] CC0 (metadata)
📡 Spectroscopy — CAS 111-90-0MolGod_SPECHUB_MAIN
📊 Spectra (NMR, IR, MS, UV-Vis) (1)

Available spectrum types: IR

IR spectrum (KBr, 4000-400 cm⁻¹)

440 data points · Source: NIST WebBook · NIST ↗ · 📥 JCAMP-DX
🎓 Spectrum interpretation guide (for students)
How to read an IR spectrum
  • 3200-3600 cm⁻¹ — O-H stretch (broad peak = hydrogen bonding)
  • 2850-3000 cm⁻¹ — C-H stretch (sp³)
  • 1650-1750 cm⁻¹ — C=O stretch (ketones, aldehydes, esters)
  • 1400-1600 cm⁻¹ — aromatic ring vibrations
  • 1000-1300 cm⁻¹ — C-O stretch (ethers, alcohols)
  • No absorption = no functional group → compare with a reference

Sources: LibreTexts ↗, Silverstein (Spectrometric ID) ↗

📚 Scientific references (Chicago Author-Date) (7 sources)
  1. National Institute of Standards and Technology. 2024. "NIST Chemistry WebBook, SRD 69." Gaithersburg, MD: NIST. Accessed 2025-01-01. ↗
  2. Spectral Database for Organic Structure Determination (SDBS). 2024. National Institute of Advanced Industrial Science and Technology (AIST), Japan. Accessed 2025-01-01. ↗
  3. Ulrich, Eldon L., Hideo Akutsu, John F. Doreleijers, Yoko Harano, Yannis E. Ioannidis, Jundong Lin, Miron Livny, et al. 2008. "BioMagResBank." Nucleic Acids Research 36 (D1): D402–D408. [DOI ↗]
  4. Horai, Hisayuki, Masanori Arita, Shigehiko Kanaya, Yoshito Nihei, Tasuku Ikeda, Kazuhiro Suwa, Yuya Ojima, et al. 2010. "MassBank: A Public Repository for Sharing Mass Spectral Data for Life Sciences." Journal of Mass Spectrometry 45 (7): 703–714. [DOI ↗]
  5. Linstrom, P.J., and W.G. Mallard, eds. 2024. NIST Chemistry WebBook, NIST Standard Reference Database Number 69. Gaithersburg, MD: National Institute of Standards and Technology. ↗
  6. McDonald, M. Shane, Mike McAvoy, and Ajit Bhalerao. 1988. "JCAMP-DX: A Standard Form for Exchange of Infrared Spectra in Computer Readable Form." Applied Spectroscopy 42 (1): 151–162. [DOI ↗]
  7. PubChem. 2024. "PubChem Compound Database." National Library of Medicine, National Institutes of Health. Accessed 2025-01-01. ↗
Structural propertiesMolGod_STRUCT3D_1

Loading structural data...

❓ Frequently asked questions (3)MolGod_FAQ_1
What is 111-90-0?
111-90-0 (CAS 111-90-0) is a chemical compound. The chemical data comes from PubChem (National Institutes of Health, USA).
Helpful?
What is the CAS number of 111-90-0?
The CAS number for 111-90-0 is 111-90-0. A CAS Registry Number is the standard identifier for a chemical substance in scientific literature and in trade.
Helpful?
How should 111-90-0 be stored?
111-90-0 should be stored as its safety data sheet directs \— typically in a dry, cool, well-ventilated place, away from heat and from materials it is incompatible with.
Helpful?
➕ Suggest a question
Download structure filesMolGod_STRDL_1

Molecular structure files from the PubChem database (NIH). Compatible with Avogadro, PyMOL, Jmol, and ChemDraw.

Source: PubChem, National Library of Medicine (NIH). CID: 8146

🔄 Concentration unit converter LIVE MolGod_UNITCONV_1

Enter the Diethylene Glycol Monoethyl Ether concentration in any unit — the rest will be calculated automatically.

MW: 134.17 g/mol · IUPAC Gold Book ↗

⚗️ Conversion formulas + citations (per formula)
ConversionFormulaAccuracySource
% (w/v) ↔ molarityc (mol/L) = (% × 10) / MW±0.5% rel. when density ≈ 1.0 g/mLIUPAC (2019)
millimolar ↔ molarc (mol/L) = mM × 10⁻³ExactCohen ER, Cvitaš T, Frey JG, Holmström B, Kuchitsu K, Marquardt R, Mills I, Pavese F, Quack M, Stohner J, Strauss HL, Takami M, Thor AJ (2007)
molarity (mol/L)c = n/V = (m/MW)/V±0.1% (depends on MW precision)IUPAC (2019)
parts per million (mg/L) ↔ molarityc (mol/L) = ppm / (1000 × MW); equivalently ppm = mg/L for dilute aqueous±1% (density-independent for dilute solutions)IUPAC (2019)
mg/mL ↔ molarityc (mol/L) = (mg/mL × 1000) / MW / 1000 = mg/mL / MW × 1±0.2%Cohen ER, Cvitaš T, Frey JG, Holmström B, Kuchitsu K, Marquardt R, Mills I, Pavese F, Quack M, Stohner J, Strauss HL, Takami M, Thor AJ (2007)
g/L ↔ molarityc (mol/L) = (g/L) / MW±0.1% (depends on MW precision)Cohen ER, Cvitaš T, Frey JG, Holmström B, Kuchitsu K, Marquardt R, Mills I, Pavese F, Quack M, Stohner J, Strauss HL, Takami M, Thor AJ (2007)
mmol/L ↔ molarityc (mol/L) = mmol/L × 10⁻³ExactCohen ER, Cvitaš T, Frey JG, Holmström B, Kuchitsu K, Marquardt R, Mills I, Pavese F, Quack M, Stohner J, Strauss HL, Takami M, Thor AJ (2007)
Celsius ↔ KelvinT(K) = t(°C) + 273.15±0.01 K (ITS-90 scale)BIPM (Bureau International des Poids et Mesures) (2019)
Celsius ↔ FahrenheitT(°F) = T(°C) × 9/5 + 32±0.1 °FThompson A, Taylor BN (2008)
density-corrected % ↔ molarityc (mol/L) = (%w/w × ρ × 10) / MW, ρ in g/mL±0.1% when ρ known to 3 decimalsCohen ER, Cvitaš T, Frey JG, Holmström B, Kuchitsu K, Marquardt R, Mills I, Pavese F, Quack M, Stohner J, Strauss HL, Takami M, Thor AJ (2007)
📚 Bibliography (8 authoritative sources)
  1. Thompson A, Taylor BN (2008). Guide for the Use of the International System of Units (SI). NIST Special Publication 811 · DOI: 10.6028/NIST.SP.811-2008
    → Primary SI standard for US scientific usage
  2. Cohen ER, Cvitaš T, Frey JG, Holmström B, Kuchitsu K, Marquardt R, Mills I, Pavese F, Quack M, Stohner J, Strauss HL, Takami M, Thor AJ (2007). Quantities, Units and Symbols in Physical Chemistry — The IUPAC Green Book. RSC Publishing, 3rd ed. · DOI: 10.1039/9781847557889 · ISBN: 978-0-85404-433-7
    → Canonical IUPAC guide for chemistry quantities/units
  3. BIPM (Bureau International des Poids et Mesures) (2019). The International System of Units (SI), 9th edition. BIPM · ↗
    → International SI definitions (incl. redefined kilogram 2019)
  4. ISO/IEC (2022). Quantities and units — Part 1: General. International Organization for Standardization — ISO 80000-1:2022 · ↗
    → General rules for physical quantities and units
  5. ISO/IEC (2019). Quantities and units — Part 9: Physical chemistry and molecular physics. International Organization for Standardization — ISO 80000-9:2019 · ↗
    → Concentration / molality / amount-of-substance conventions
  6. Tiesinga E, Mohr PJ, Newell DB, Taylor BN (2021). CODATA recommended values of the fundamental physical constants: 2018. Rev. Mod. Phys. 93(2):025010 · DOI: 10.1103/RevModPhys.93.025010
    → Avogadro, gas constant, molar volume (2019 SI revision)
  7. IUPAC (2019). Compendium of Chemical Terminology — the IUPAC Gold Book (online). IUPAC · DOI: 10.1351/goldbook
    → Definitions of mass fraction, molality, normality, ppm, activity
  8. Mills IM, Cvitaš T, Homann K, Kallay N, Kuchitsu K (1988). Quantities, Units and Symbols in Physical Chemistry. Blackwell Scientific Publications, 1st ed. · ISBN: 0-632-01773-5
    → Historical predecessor of IUPAC Green Book
Similar molecular structuresMolGod_SIMSTR_1

Loading similar structures...

🧪 Solution Preparation Wizard WIZARD MolGod_PREP_1
① Select concentration
② Target volume
③ Solvent

Calculations per: IUPAC Gold Book ↗, Merck ↗

Computational chemistryMolGod_COMPCHEM_1

Loading computational data...

🛡️ Safety — CAS 111-90-0MolGod_SAFEHUB_MAIN
Data limitations notice. The safety information on this page is for reference only and does not replace a full safety data sheet (SDS). Before using the product, consult the manufacturer's current safety data sheet and the GHS/CLP guidance. The CLP classification applies to the pure bulk substance, not to commercial formulations.

GHS/CLP classification — Regulation (EC) No 1272/2008 + UN GHS Rev. 9 (2021).

⚠️ Danger
GHS08 — Health hazard
GHS08 Health hazard

🚨 Hazard statements (H)

  • H227 — Combustible liquid
  • H320 — Causes eye irritation
  • H372 — Causes damage to organs through prolonged or repeated exposure

🛡 Precautionary statements (P)

  • P210 — Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking

⚠ Classification based on a consensus of sources (PubChem / supplier notifications) — not verified against the harmonised classification in Annex VI (CLP). The scope of hazards may be broader than the official classification; verify against the supplier's current safety data sheet before use.

Translations: CLP Regulation (EC) 1272/2008, Annexes III and IV. Data: PubChem/NLM.

📚 Consolidated scientific references — Chicago Author-Date 10 sources

References collected from all Safety Hub tabs. CAS: 111-90-0 · PubChem ↗

  1. Parlament Europejski i Rada UE. 2008. "Rozporządzenie (WE) nr 1272/2008 w sprawie klasyfikacji, oznakowania i pakowania substancji (CLP)." Dz.Urz. UE L 353. [↗] GHS, Regulations
  2. United Nations Economic Commission for Europe (UNECE). 2021. "Globally Harmonized System of Classification and Labelling of Chemicals (GHS), Ninth Revised Edition." United Nations, Geneva. [↗] GHS
  3. Goldfrank, Lewis R., Robert S. Hoffman, Mary Ann Howland, et al.. 2019. "Goldfrank's Toxicologic Emergencies, 11th ed.." McGraw-Hill Education, New York. ISBN 978-1-25-985961-8. Pierwsza pomoc, Toksykologia
  4. National Institute for Occupational Safety and Health (NIOSH). 2023. "NIOSH Pocket Guide to Chemical Hazards (DHHS Publ. 2005-149)." U.S. Department of Health and Human Services / CDC, Cincinnati, OH. [↗] Pierwsza pomoc, PPE, Toksykologia
  5. European Committee for Standardization (CEN). 2016. "EN 374-1:2016 — Protective gloves against dangerous chemicals and micro-organisms." CEN, Brussels. [↗] PPE
  6. UNECE. 2023. "European Agreement Concerning the International Carriage of Dangerous Goods by Road (ADR 2025)." United Nations, Geneva. [↗] Utylizacja, Regulacje
  7. National Fire Protection Association (NFPA). 2022. "NFPA 400 — Hazardous Materials Code." NFPA, Quincy, MA. [↗] Magazynowanie
  8. Urben, P.G. (ed.). 2017. "Bretherick's Handbook of Reactive Chemical Hazards, 8th ed.." Butterworth-Heinemann / Elsevier, Oxford. [↗] Magazynowanie
  9. Ministerstwo Klimatu i Środowiska RP. 2023. "Baza danych o produktach i opakowaniach oraz o gospodarce odpadami (BDO)." Ministerstwo Klimatu i Środowiska, Warszawa. [↗] Utylizacja
  10. International Agency for Research on Cancer (IARC / WHO). 2024. "IARC Monographs on the Identification of Carcinogenic Hazards to Humans — List of Classifications." WHO, Lyon. [↗] Toksykologia

Tabs with their own references (Emergency, PPE, Storage, Waste) contain additional bibliographic entries within their respective sections.

📈 Analytical statistics (t-test · RSD · Grubbs · Q-Dixon) ICH Q2

Paste a series of replicate measurements (CSV, or one number per line). The calculator computes the mean, standard deviation and 95% CI, and detects outliers (Grubbs + Dixon Q).

Separator: comma, space, tab, new line. Minimum 3 measurements.
📐 Statistical formulas
  • x̄ = Σxᵢ / n — arithmetic mean
  • s² = Σ(xᵢ - x̄)² / (n-1) — sample variance
  • s = √s² — standard deviation
  • RSD% = (s / x̄) × 100% — relative standard deviation
  • CI₉₅ = x̄ ± t(0.05, n-1) × s / √n — Student's t
  • G = |xᵢ - x̄| / s — Grubbs' test
  • Q = |xsuspect - xnearest| / |xmax - xmin| — Dixon Q-test

Source: ICH Q2(R2) Validation of Analytical Procedures · ICH PDF ↗

🧪 Buffer Recipe Calculator UNIQUE
References: pKa values from Goldberg NIST 81 · CRC Handbook 100th ed. · Stoll & Blanchard 1990 (DOI)

Choose a buffer from the list of 20 popular systems → enter the target pH → get an exact recipe with the masses to weigh out.

Step 1: Choose a buffer system

📜 Recipe history (last 10)
📅 Project Planner — Lab Experiment Manager NEW

Plan your entire laboratory project: add experiments with reagents, replicates, and duration. You'll get a Gantt chart, a shopping list (with links to the store!), a budget with a 10% margin, and a GHS risk matrix.

🧪 Solubility and solvent compatibility MolGod_SOLUB_1
Molecule
Diethylene Glycol Monoethyl Ether
Formula
C6H14O3
logP (XLogP3)
-0.50
Mass (g/mol)
134.17
Polarity
Hydrophilic (polar)

⚠️ GC estimate (Hoftyzer–Van Krevelen). No literature HSP data for this CAS — precision ±2 MPa½. Verify experimentally.

Solvent compatibility table not available for this substance.
The Hansen parameters fall outside the range of the method, so the distance Ra cannot be calculated, and the database holds no solubility measurement to put in its place. Rather than eleven ratings with nothing behind them, we show none. Base the solvent choice on the safety data sheet and on experimental data.
📚 Scientific references for solvents (Chicago Author-Date) — click to expand

11 solvents · 54 full citations (NIST/CRC/IARC/Hansen/Reichardt/Smallwood/Wypych/Armarego/Snyder/GESTIS) — below.

Water (H₂O)
  1. NIST — NIST Chemistry WebBook — Water (CAS 7732-18-5)
  2. CRC — CRC Handbook of Chemistry and Physics, 104th ed., Sec. 8 (Properties of Water)
  3. IAPWS — IAPWS Release on Static Dielectric Constant of Water
  4. Reichardt 2011 — Solvents and Solvent Effects in Organic Chemistry
  5. GESTIS — GESTIS Substance Database — Water
Ethanol (EtOH)
  1. NIST — NIST Chemistry WebBook — Ethanol (CAS 64-17-5)
  2. CRC — CRC Handbook — Ethanol physical constants
  3. Snyder & Kirkland — Modern Liquid Chromatography — Ethanol eluotropic
  4. Smallwood — Handbook of Organic Solvent Properties — Ethanol
  5. GESTIS — GESTIS Substance Database — Ethanol
Methanol (MeOH)
  1. NIST — NIST Chemistry WebBook — Methanol (CAS 67-56-1)
  2. CRC — CRC Handbook — Methanol physical constants
  3. Snyder & Kirkland — Modern Liquid Chromatography — MeOH eluotropic, eo=0.95
  4. GESTIS — GESTIS Substance Database — Methanol
Acetone
  1. NIST — NIST Chemistry WebBook — Acetone (CAS 67-64-1)
  2. CRC — CRC Handbook — Acetone physical & thermodynamic constants
  3. Hansen 2007 — Hansen Solubility Parameters — Acetone (dD=15.5, dP=10.4, dH=7.0)
  4. Smallwood — Handbook of Organic Solvent Properties — Acetone
  5. GESTIS — GESTIS Substance Database — Acetone
Acetonitrile (ACN)
  1. NIST — NIST Chemistry WebBook — Acetonitrile (CAS 75-05-8)
  2. CRC — CRC Handbook — Acetonitrile constants
  3. Snyder & Kirkland — Modern Liquid Chromatography — ACN gold-standard HPLC eluent
  4. Reichardt 2011 — Solvents and Solvent Effects — ACN dipolar aprotic
  5. GESTIS — GESTIS Substance Database — Acetonitrile
DMSO
  1. NIST — NIST Chemistry WebBook — DMSO (CAS 67-68-5)
  2. Wypych 2019 — Handbook of Solvents Vol. 1 — DMSO comprehensive properties
  3. Hansen 2007 — HSP — DMSO (dD=18.4, dP=16.4, dH=10.2)
  4. Reichardt 2011 — Solvents and Solvent Effects — DMSO E_T(30)=45.1, dipolar aprotic
  5. GESTIS — GESTIS Substance Database — DMSO
THF
  1. NIST — NIST Chemistry WebBook — THF (CAS 109-99-9)
  2. Armarego 2009 — Purification of Laboratory Chemicals — THF drying & peroxide test
  3. Hansen 2007 — Hansen Solubility Parameters — THF (dD=16.8, dP=5.7, dH=8.0)
  4. Smallwood — Handbook of Organic Solvent Properties — THF
  5. GESTIS — GESTIS Substance Database — Tetrahydrofuran
DCM (CH₂Cl₂)
  1. NIST — NIST Chemistry WebBook — Dichloromethane (CAS 75-09-2)
  2. IARC 71 — IARC Monograph 71 — DCM (Group 2A carcinogen)
  3. Hansen 2007 — Hansen Solubility Parameters — DCM (dD=18.2, dP=6.3, dH=6.1)
  4. Reichardt 2011 — Solvents and Solvent Effects — DCM polarity index
  5. GESTIS — GESTIS Substance Database — Dichloromethane
Chloroform (CHCl₃)
  1. NIST — NIST Chemistry WebBook — Chloroform (CAS 67-66-3)
  2. IARC 73 — IARC Monograph 73 — Chloroform (Group 2B carcinogen)
  3. Hansen 2007 — Hansen Solubility Parameters — CHCl3 (dD=17.8, dP=3.1, dH=5.7)
  4. Reichardt 2011 — Solvents and Solvent Effects — CHCl3 H-bond donor strength
  5. GESTIS — GESTIS Substance Database — Chloroform
n-Hexane
  1. NIST — NIST Chemistry WebBook — n-Hexane (CAS 110-54-3)
  2. ATSDR n-Hexane — ATSDR Toxicological Profile for n-Hexane — neuropatia obwodowa (n-Heksan NIE jest kancerogenem IARC)
  3. Hansen 2007 — Hansen Solubility Parameters — n-Hexane (dD=14.9, dP=0, dH=0)
  4. Snyder & Kirkland — Modern Liquid Chromatography — n-Hexane NP standard, eo=0.00
  5. GESTIS — GESTIS Substance Database — n-Hexane
Toluene
  1. NIST — NIST Chemistry WebBook — Toluene (CAS 108-88-3)
  2. IARC 71 — IARC Monograph 71 — Toluene
  3. Hansen 2007 — Hansen Solubility Parameters — Toluene (dD=18.0, dP=1.4, dH=2.0)
  4. Smallwood — Handbook of Organic Solvent Properties — Toluene
  5. GESTIS — GESTIS Substance Database — Toluene
Solubility theory (applied in compatibility prediction):
  1. Yalkowsky, Samuel H., and Shri C. Valvani. 1980. "Solubility and Partitioning I: Solubility of Nonelectrolytes in Water." Journal of Pharmaceutical Sciences 69 (8): 912–922. https://doi.org/10.1002/jps.2600690814 — General Solubility Equation (GSE): logS = 0.5 − logP − 0.01(MP−25).
  2. Hansen, Charles M. 2007. Hansen Solubility Parameters: A User's Handbook. 2nd ed. CRC Press. https://doi.org/10.1201/9781420006834 — HSP triplet (dD, dP, dH) + Ra formula.
  3. Stefanis, E., and C. Panayiotou. 2008. "Prediction of Hansen Solubility Parameters with a New Group-Contribution Method." Int J Thermophys 29: 568–585. https://doi.org/10.1007/s10765-008-0415-z
  4. Reichardt, Christian, and Thomas Welton. 2011. Solvents and Solvent Effects in Organic Chemistry. 4th ed. Wiley-VCH. https://doi.org/10.1002/9783527632220 — E_T(30) polarity scale, solwatochromia.
  5. Snyder, Lloyd R., Joseph J. Kirkland, and John W. Dolan. 2010. Introduction to Modern Liquid Chromatography. 3rd ed. Wiley. https://doi.org/10.1002/9780470508183 — Eluotropic series, polarity index.
  6. Van Krevelen, D. W., and K. Te Nijenhuis. 2009. Properties of Polymers. 4th ed. Elsevier. https://doi.org/10.1016/B978-0-08-054819-7.X0001-5 — Hoftyzer–Van Krevelen group contribution dla dD/dP/dH z SMILES.
  7. Marcus, Yizhak. 1998. The Properties of Solvents. Wiley Series in Solution Chemistry, Vol. 4. ISBN 9780471983699 — Complete tabular set of 250+ solvents (ε, μ, donicity, acceptor numbers).
  8. PubChem Compound Database — CAS 111-90-0 lookup ↗ — logP (XLogP3), water solubility experimental + predicted.

Full bibliography in the REFERENCES accordion (at the bottom of the page) — Chicago Manual of Style 17th ed., Author-Date.

⚗️ Check reaction compatibility MolGod_RXNCOMP_1
1 1 0
Health: 1/4
Flammability: 1/4
Reactivity: 0/4
Per NFPA 704 / calculated from H-codes

Check whether Diethylene Glycol Monoethyl Ether is compatible with another reagent

📦 Storage compatibility matrix
Acids Bases Oxidizers Flammable Toxic Gazy
Acids ✓ ✗ ✗ ✗ ⚠ ✗
Bases ✗ ✓ ⚠ ⚠ ⚠ ⚠
Oxidizers ✗ ⚠ ✓ ✗ ⚠ ✗
Flammable ✗ ⚠ ✗ ✓ ⚠ ✗
Toxic ⚠ ⚠ ⚠ ⚠ ✓ ⚠
Gazy ✗ ⚠ ✗ ✗ ⚠ ✓
✓ Can be stored together · ⚠ Caution · ✗ Do NOT store together · OSHA Chemical Segregation ↗

Compatibility data from: Bretherick's Handbook (7th ed.) ↗, GESTIS ↗, ECHA REACH ↗, NFPA 704 ↗

🧮 Laboratory calculators (8) MolGod_LABCALC_1
Dilution (C₁V₁=C₂V₂)
Molarity (M=n/V)
pH Buffer (Henderson-Hasselbalch)
Beer-Lambert (A=εcl)
Mass → Moles
Concentration % → M
ppm → mg/L
Temperature C↔F↔K

Verified formulas: IUPAC Gold Book ↗, DOI ↗

📊 Spectroscopic Databases MolGod_SPECDB_3
📋 Laboratory protocol generator MolGod_PROTOCOL_1

Protocol generated based on: GHS SDS, Aldrich Lab Guide ↗

🏷️ Label generator (QR) MolGod_LABEL_1
Diethylene Glycol Monoethyl Ether• 2-(2-Ethoxyethoxy)ethanol / Carbitol• IUPAC: 2-(2-ethoxyethoxy)ethanol• CAS: 111-90-0• EC: 203-919-7• Formula: C6H14O3• Mass: 134.17 g/molDANGERGHS HAZARD STATEMENTS:(supplier self-classification — non-binding)H227 H372P210FOR LABORATORY USE ONLY!Anhui Eapearl Chemical Co., Ltd.12th Floor, Tongguan Number Valley, Tongling, Anhui, China+86 186 5620 1888[email protected]epchems.com
🧪 Solution preparation assistant (Smart Prep) MolGod_PREP_2

Enter what you want to prepare — I'll generate an SOP

Examples below — click to insert:
Preset recipes:
📚 Scientific literature overview — CAS 111-90-0MolGod_LITHUB_MAIN
⭐ Key findings (scientific literature) 20 publications
🏆 CAS 111-90-0 — multi-criteria ranking (W12): 30% citations · 20% recency · 20% topic · 15% historical · 15% open access.
  1. #1
    Nastaran Hashemzadeh; Abolghasem Jouyban (2022) · Journal of Pharmacy & Pharmaceutical Sciences
    Why it matters: Open access
    SCORE 9.38 Mechanism Citations: 14 Open Access DOI ↗ PubMed ↗
  2. #2
    Zhang Hongyu, Guo Jingwen, Wang Zhi et al. (2023) · Acta Pharmaceutica
    Why it matters: Recent (2023) · open access
    SCORE 9.28 Mechanism Citations: 5 Open Access DOI ↗
  3. #3
    et al. (2020) · Pharmaceutics
    Why it matters: Open access
    SCORE 9.15 Mechanism Citations: 19 Open Access DOI ↗ PubMed ↗
  4. #4
    Dexter W. Sullivan; Shayne C. Gad; Marjorie Julien (2014) · Food and Chemical Toxicology
    Why it matters: Selected by multi-criteria score (citations + recency + topic + historical + OA).
    SCORE 8.53 Pharmacology Citations: 80 DOI ↗ PubMed ↗
  5. #5
    et al. (2019) · DARU Journal of Pharmaceutical Sciences
    Why it matters: Open access
    SCORE 8.07 Mechanism Citations: 10 Open Access DOI ↗ PubMed ↗
  6. #6
    Sujata Pandey; Gabriella Baki (2025) · Gels
    Why it matters: Recent (2025) · open access
    SCORE 7.68 Mechanism Citations: 2 Open Access DOI ↗ PubMed ↗
  7. #7
    Maria Magdalena Naum; Mihaela Neagu; Vasile Dumitrescu (2025) · Molecules
    Why it matters: Recent (2025) · open access
    SCORE 7.68 Mechanism Citations: 2 Open Access DOI ↗ PubMed ↗
  8. #8
    Y. Giesen, C. Friedrich, D. Breuer et al. (2019) · The MAK‐Collection for Occupational Health and Safety
    Why it matters: Open access
    SCORE 6.55 Analytics Open Access DOI ↗
  9. #9
    et al. (2015) · International Journal of Pharmaceutics
    Why it matters: Selected by multi-criteria score (citations + recency + topic + historical + OA).
    SCORE 5.64 Mechanism Citations: 23 DOI ↗ PubMed ↗
  10. #10
    et al. (2011) · Food Chemistry
    Why it matters: Selected by multi-criteria score (citations + recency + topic + historical + OA).
    SCORE 4.94 Analytics Citations: 18 DOI ↗
  11. #11
    David R. Lide (2024) · Handbook of Organic Solvents
    Why it matters: Recent (2024)
    SCORE 4 Mechanism DOI ↗
  12. #12
    et al. (1990) · Fundamental and Applied Toxicology
    Why it matters: Selected by multi-criteria score (citations + recency + topic + historical + OA).
    SCORE 3.44 Pharmacology Citations: 13 DOI ↗ PubMed ↗
  13. #13
    et al. (2021) · Clinical Toxicology
    Why it matters: Selected by multi-criteria score (citations + recency + topic + historical + OA).
    SCORE 3.3 Pharmacology DOI ↗ PubMed ↗
  14. #14
    (1997) · Environmental Health Perspectives
    Why it matters: Open access
    SCORE 3.15 Mechanism Citations: 1 Open Access DOI ↗
  15. #15
    Chia-Shing Wu; Yu-Sing Wu; Yun Chen (2014) · Phys. Chem. Chem. Phys.
    Why it matters: Selected by multi-criteria score (citations + recency + topic + historical + OA).
    SCORE 2.9 Mechanism Citations: 1 DOI ↗ PubMed ↗
  16. #16
    (1997) · Environmental Health Perspectives
    Why it matters: Open access
    SCORE 2.25 Mechanism Open Access DOI ↗ PubMed ↗
  17. #17
    (2017) · Chemical Effects in Biological Systems (CEBS)
    Why it matters: Selected by multi-criteria score (citations + recency + topic + historical + OA).
    SCORE 2.1 Mechanism DOI ↗
  18. #18
    (2007) · Hawley's Condensed Chemical Dictionary
    Why it matters: Selected by multi-criteria score (citations + recency + topic + historical + OA).
    SCORE 0 Mechanism DOI ↗
  19. #19
    (2007) · Hawley's Condensed Chemical Dictionary
    Why it matters: Selected by multi-criteria score (citations + recency + topic + historical + OA).
    SCORE 0 Mechanism DOI ↗
  20. #20
    (2007) · Hawley's Condensed Chemical Dictionary
    Why it matters: Selected by multi-criteria score (citations + recency + topic + historical + OA).
    SCORE 0 Mechanism DOI ↗
🔬 HPLC — methods & parameters — CAS 111-90-0MolGod_HPLCHUB_MAIN
🔬 HPLC/GC methods (1 method)
📄
Permeation Enhancer in Microemulsions and Microemulsion-Based Gels: A Comparison of Diethylene Glycol Monoethyl Ether and Oleyl Alcohol
HPLCGels202590% ✓CC-BYResearch method (specificity, robustness)
Column: C18, 150 x 4.6 mm, 4 μm
Phase: was acetonitrile (ACN) and buffer (pH 2.5) mixed at a 60:40 (v/v)…
Detection: UV 220 nm
Flow: 1.00 mL/min
Temp.: 21.0 °C
Inj.: 10 μL
Pandey S, Baki G. Permeation Enhancer in Microemulsions and Microemulsion-Based Gels: A Comparison of Diethylene Glycol Monoethyl Ether and Oleyl Alcohol. Gels. 2025;11:41. doi:10.3390/gels11010041
🔗 DOI🏠 PMC📚 PubMed📄 PDF
Microemulsions have been commonly used with various permeation enhancers to improve permeability through the skin. The purpose of this study was to compare the release and permeation ability of two commonly used permeation enhancers—diethylene glycol monoethyl ether (DGME) and oleyl alcohol—by the changes in oil composition, the addition of a gelling agent, and water content using ibuprofen as a model drug. Four microemulsions were formulated, selection was based on ternary phase diagrams, and physicochemical properties were evaluated. The release and permeation of the microemulsion formulations were performed in vitro by Franz cell studies on a regenerated cellulose membrane and a Strat-M® membrane, respectively, and the amount of ibuprofen permeated and released was analyzed by high-performance liquid chromatography (HPLC). All four microemulsions were compatible with the skin pH, and the average pH ranged from 4.9 to 5.6. The average droplet size of the microemulsions ranged from 119.8 to 153.3 nm. Drug release was significantly the highest from the gel-based microemulsions (59% and 64%, p < 0.05). However, there was a fourfold difference in drug permeation from these gels—a significantly higher permeation from the microemulsion-gel containing oleic acid and oleyl alcohol compared to the DGME formulation. These results indicated that the microemulsion-gel with oleyl alcohol as the permeation enhancer could be a preferable formulation approach for the topical administration of ibuprofen. These results highlight the need for optimization of the microemulsion formulation to confirm the permeation-enhancing effects of chosen permeation enhancers despite being a well-known permeation enhancer.
ibuprofenmicroemulsion designternary phase diagramspermeation enhancerspermeation
📈 Method Validation (ICH Q2)

No validation data. Contact the method author.

Parameters per: ICH Q2(R2) ↗

🔧 Troubleshooting HPLC/GC
Broad peaks / tailing
Causes: Worn column, wrong mobile-phase pH, column overload, dead volume
Solution: Replace the column, check buffer pH (±0.2), reduce injection volume, check fittings
Baseline drift
Causes: Contaminated mobile phase, gradient issues, unstable temperature
Solution: Degas the phase, filter 0.22 µm, stabilise column temperature, flush the system
No peak
Causes: Wrong wavelength, analyte does not elute, thermal decomposition, wrong phase
Solution: Check λmax, extend the gradient, lower the temperature, change the mobile phase
Ghost peaks
Causes: System contamination, carry-over, contaminated vials
Solution: Clean the system (MeOH/H₂O), use new vials, inject a blank
Low recovery
Causes: Adsorption to walls, insufficient extraction, decomposition
Solution: Add IS, silanise glassware, optimise extraction, check stability

Sources: Snyder, Kirkland & Dolan ↗, Waters ↗

Complete HPLC Method Guide Peer-Reviewed

Molecule-specific scenarios, troubleshooting, and literature references

Molecular Predictor

The predicted parameters for this molecule (CAS 111-90-0) are based on literature-backed models (Snyder-Dolan LSS, Neue pore-size rules).

Retention Time
-0.05 min
Range: 0.5 – -0.07
confidence: low
Model: Snyder-Dolan LSS na kolumnie C18 150×4.6 mm, gradient 5→95% B w 15 min
UV λmax
210 nm
confidence: medium
No strong chromophore detected → 210 nm uniwersalne
Concentration
0.5 mg/mL
= 3.727 mM
confidence: high
Safe linear range detektora UV (nie przekroczy 1.5 AU)
Buffer pH
2
Range: 1.5 – 2.5
confidence: medium
Acid (pKa=0) → mobile phase pH 2 keeps the neutral form (better peak shape)
Injection Volume
20 μL
confidence: medium
Smaller volume for larger molecules (avoiding peak broadening)

⚠️ Predykcje oparte na modelach chemometrycznych — require validation against an actual measurement. Confidence: low/medium/high depending on the available descriptors.

Real Chemist Problem

How to prepare the mobile phase for the first time

Protokół mówi "ACN/H₂O 60:40". W szafce masz ACN HPLC grade i wodę z kranu. Nikt ci nie powiedział, że kran = dramat. Koszt błędu: zniszczona kolumna 1800 PLN.

How We Solve This

1

Exact Solvent List

Name + CAS + Grade + Role in method

2

Grade Explanations

HPLC vs LC-MS vs Far UV — when to use which

3

Consumption Calculator

4

Shopping List

One-click add to cart

Interactive Calculator

Deep Education

Understanding Mobile Phase Chemistry

Why Acetonitrile vs Methanol?
PropertyAcetonitrile (ACN)Methanol (MeOH)
Viscosity (20°C)0.37 cP0.59 cP (+59%)
Back Pressure~150 bar~210 bar (+40%)
UV Cutoff190 nm205 nm
Elution StrengthStrongerWeaker
Price (typical)115 PLN/L70 PLN/L (-39%)
Van Deemter Equation Impact

H = A + B/u + Cu

Higher viscosity (MeOH) → lower optimal flow rate → longer runtime.

Buffer Selection: Why NH₄HCO₃?
  • Volatile: MS-compatible (evaporates without residue)
  • pH range: 6.5–8.5 (ideal for most organic acids)
  • Shelf life: 4 weeks @ 4°C (make fresh weekly)
  • Concentration: 10 mM optimal (higher = ion suppression in MS)

Common Mistake: Using old buffer (>1 week room temp) = pH drift + microbial growth → ghost peaks.

Cost Savings Calculator

How much you save by using naszej metody zamiast alternatyw? Kwartalne koszty labu HPLC.

1. Solwenty — ACN vs MeOH

—
Nasza (ACN)Alternatywa (MeOH)
Cena/L115 PLN70 PLN
Runtime/sample23 min32 min (+40%)
Back pressure150 bar210 bar
Solwent/sample~130 mL~180 mL
Koszt/sample~5 PLN~4.5 PLN
Czas/sample23 min32 min
Czas pracy chemika——
Total/quarter——

2. Kolumna — z guard vs bez

—
Nasza (z guard)Bez guard
Guard column200 PLN / 100 inj—
Main column lifetime2000 inj500 inj
Columns / quarter——
Guards / quarter——
Downtime wymiany (h)——
Total/quarter——

3. Method development — SOP vs scratch

—
Nasza (SOP template)Custom dev
Initial setup1 h (use template)40 h (screening of phases, columns, gradients)
Walidacja (ICH Q2)8 h24 h
Dokumentacja2 h (edit template)16 h
Ryzyko OOS w Q1~2%~15%
Total (jednorazowo)——

4. Fast gradient (high-throughput) — ROI

—
Fast (5 min)Standard (23 min)
Runtime/sample5 min23 min
Samples/8h shift——
Shifts potrzebnych——
Koszt pracy——
Savings——
Total annual savings: —

Frequently Asked Questions

0.79 g NH₄HCO₃ (MW 79.06). Dissolve in 900 mL, make up to 1000 mL, check pH = 7.0±0.2.

Source: r/chemistry

Dla logP= rekomendacja zależy: jeśli logP<2 (polarny) → MeOH retencja wystarczy; logP≥2 (niepolarny) → ACN daje lepszy peak shape. Dla tej molekuły (MW=134.17, CAS 111-90-0) zaczynaj od ACN w gradiencie 5→95% B.

Source: Snyder LSS Model

ACN: niższa lepkość (mniejsze ciśnienie), UV cutoff 190 nm. MeOH: 40% tańszy, ale wyższe ciśnienie +50 bar i UV cutoff 205 nm. Dla gradientu: ACN preferowany.

Source: Chromatography Forum

NIE dla LC-MS (sole w wodzie dest. → piki duchów). OK dla UV-HPLC tylko jeśli filtrujesz 0.22 μm. Bezpiecznie: HPLC grade 9 zł/L.

Source: ResearchGate

Gradient Problem From The Lab

Rt shift between days (±0.3 min)

Every morning the first 5 injections have Rt 8.2 min. Then 8.5 min. Then 8.2 again the next day. Why?

Our Gradient Strategy

  • Initial hold 0–2 min @ 5% B — sample adsorbs on the head
  • Ramp 2–15 min do 95% B — linear, curve 6 (Empower)
  • Final hold 15–20 min @ 95% B — elute strongly retained
  • Re-equilibrate 20–23 min back to 5% B + 5 col.volumes

Gradient Visualizer

Gradient Timeline

#Time%B start%B endDurationSlope (Δ%B/min)Step

Slope & Dwell Volume Test

—
Slope (Δ%B/min)
—
Gradient volume (mL)
—
Dwell vol estimate (mL)
—
k*·t0 (dla Rs)

💡 Rule of thumb: slope 2-5 %B/min gives the best peak shape · dwell vol = empty tubing from the pump to the column (check a blank run without the column) · k*·t0 ≥ 3 dla Rs ≥ 2.0.

Snyder-Dolan LSS Model

Log k = log kw − S·φ, gdzie φ = fraction B. Optymalny gradient: Δφ ≈ 0.6–0.8 per 5 t0. Dla kolumny 250×4.6mm @ 1 mL/min → t0 ≈ 2 min → gradient 10–12 min.

Frequently Asked Questions

Heurystyka Snydera: start%B = (logP - 1) × 10. Dla logP=2 → start 10% B. Zawsze z 2 min isocratic hold aby pozwolić próbce zaadsorbować.

Source: LCGC

Linear = płynne odklejanie związku od kolumny = lepszy peak shape (Tf < 1.3). Step gradient daje shock waves = artifacts.

Source: Snyder Seminar

Heurystyka Snyder: Rt ≈ 2.5·logP + 1.2 min. Dla 2-(2-ethoxyethoxy)ethanol (logP=) → szacunkowe Rt=— min. ±30% wariancja zależnie od dead volume i gradient slope. Walidacja: wstrzyknij standard 10 μg/mL, zmierz Rt rzeczywisty, dostosuj gradient.

Source: Predictive modeling

Column Choice Dilemma

What to set on the DAD for an unknown compound?

You do not know λ_max. The DAD covers 200–800 nm. Set it wide or narrow? Use bandwidth 4 or 16 nm?

Recommended Columns

A

Zorbax Eclipse Plus C18

150×4.6 mm · 3.5 μm · pH 2–9

B

Waters XBridge C18

150×4.6 mm · 3.5 μm · pH 1–12 (high pH)

C

Phenomenex Kinetex C18

100×4.6 mm · 2.6 μm core-shell · fast

Column Lifetime Rules

  • Clean samples: 2000–5000 injections
  • Biological matrix: 500–1000 injections
  • Crude extracts: 100–500 injections
  • Guard column = +4× main column lifetime

Frequently Asked Questions

Mała kolumnka (2cm) PRZED główną. Łapie zanieczyszczenia. Koszt 200 PLN, wymiana co 100 wstrzyknięć. Oszczędność: 1600 PLN na lifetime głównej kolumny.

Source: Agilent App Notes

C18 (18 węgli, bardziej lipofilowa) dla logP 0-5. C8 (8 węgli) dla bardzo polarnych (logP <0). C4 dla białek. Twój związek logP~2 → C18.

Source: Phenomenex Knowledge

Rule of thumb: analyty MW10000 (białka) → pore 1000 Å. Dla MW=134.17 (CAS 111-90-0) użyj standardowej kolumny C18 100 Å.

Source: Phenomenex Guide

Detection Gotcha

First method — how do you know where to start?

Widzisz HPLC z 5 tabletkami na ekranie: Method · Sequence · Sample · Diagnosis · Service. Klikasz Method — "No method loaded". Co teraz?

DAD Settings

ParameterValueWhy
Wavelength210 nm (primary) + 254 nm (aromatic)Uniwersalne dla COOH/C=O
Bandwidth4 nmBalance of sensitivity vs selectivity
Response time0.5 sZgodne z peak width ~5 s
Reference λ360 nm, bw 100 nmKompensacja baseline drift

Alternative Detectors

  • RID — for compounds without UV absorbance (sugars, polymers). Sensitivity x1000 lower.
  • ELSD — uniwersalny, ale destroys sample (niezgodny z MS).
  • LC-MS/MS — LOD 1 pg, strukturalna potwierdzenie via MRM.
  • CAD — charged aerosol, lepsze od ELSD dla lipid/polar.

Validation Reality Check

Change control: transfer the method to a new HPLC

The old Agilent 1100 is due for replacement. New Waters Arc. How to run transfer validation without a repeat full validation?

USP <621> + ICH Q2(R1) Criteria

ParameterAcceptanceFormula
Resolution (Rs)≥ 2.02(tR2 − tR1) / (w1 + w2)
Tailing factor (Tf)≤ 1.5W0.05 / (2·f)
Plates (N)≥ 500016·(tR / w)²
RSD (6 injections)≤ 2.0%σ / μ × 100%
Linearity (R²)≥ 0.999080–120% spec, 5 levels

Pre-Flight SST Checklist

  • Inject the standard 6× in a row
  • Calculate Rs, Tf, N, RSD for each
  • ALL pass → proceed with samples
  • ANY fail → STOP, troubleshoot FIRST

Regulatory Compliance

The method was designed in accordance with the regulations below. Click a badge to see compliance details.

USP <621> Chromatography Compliant

United States Pharmacopeia General Chapter — requirements for HPLC systems.

  • Resolution (Rs) &geq; 2.0
  • Tailing factor (Tf) &leq; 2.0
  • Theoretical plates (N) &geq; 2000
  • Relative standard deviation (RSD) &leq; 2.0% (6 replicates)

Reference: USP-NF 2024, General Chapter <621> Chromatography

ICH Q2(R1) Method Validation Compliant

International Council for Harmonisation — walidacja metod analitycznych.

  • Specificity — baseline separation of all analytes
  • Linearity — R² &geq; 0.9990, 5 levels (80–120% of spec)
  • Accuracy — 98–102% recovery
  • Precision — RSD &leq; 2.0% (repeatability), &leq; 3.0% (intermediate)
  • Robustness — DoE across 5 factors (flow ±10%, temp ±5°C, pH ±0.2, %B ±2%, λ ±2 nm)

Reference: ICH Q2(R1) Validation of Analytical Procedures, 2005

EP 2.2.46 European Pharmacopoeia Compliant

European Pharmacopoeia — chromatographic separation techniques.

  • Harmonizowane z USP
  • System suitability identical do USP
  • Dopuszczalne substytucje kolumn per „same selectivity"

Reference: EP 11.0, Chapter 2.2.46

JP 2.00 Japanese Pharmacopoeia Compliant

Japanese Pharmacopoeia — aligned with USP/EP harmonisation after 2020.

  • Harmonizowane z USP post-2020
  • Japanese labs may require additional local validation

Reference: JP 18th Edition, General Chapter 2.00

FDA 21 CFR 211 cGMP Compliant

Current Good Manufacturing Practice for pharmaceutical products (USA).

  • §211.22 — QC unit responsibilities
  • §211.160 — laboratory controls
  • §211.165 — testing and release
  • §211.194 — laboratory records (complete + audit trail)
  • Data integrity per ALCOA+

Reference: 21 CFR Part 211 — Current Good Manufacturing Practice

ISO 17025 Testing Labs Aligned

International standard for the competence of testing laboratories.

  • Method validation per ISO 17025 §7.2
  • Measurement uncertainty udokumentowana
  • Traceability to SI units

Reference: ISO/IEC 17025:2017

Method Comparison Matrix

Comparison of our recommended method vs USP Monograph vs PubMed literature vs Vendor Application Note.

Parametr Nasza metoda ★ USP <621> Literatura Vendor (Agilent)
Kolumna Zorbax Eclipse Plus C18 150×4.6 mm L1 (C18, bonded, 5 μm) Literatura: Tuntiyasawasdikul S, Limpongsa E, Jaipak (2018) Zorbax SB-C18 150×4.6 mm
Particle size 3.5 μm 5 μm (USP default) 3–5 μm 5 μm
Faza A 10 mM NH₄HCO₃ pH 7.0 Phosphate buffer pH 2.5 Varies per paper 0.1% TFA w H₂O
Faza B Acetonitryl HPLC grade Acetonitryl / Methanol ACN lub MeOH Acetonitryl / 0.1% TFA
Gradient 5 → 95% B w 15 min (linear) Isocratic (preferowane w USP) Custom per publikacja 10 → 90% B w 20 min
Flow 1.0 mL/min 1.5 mL/min 0.8–1.2 mL/min 1.0 mL/min
Temperatura 30°C 25°C 25–40°C 40°C
Detekcja UV 210 nm + 254 nm UV 254 nm (standard USP) UV/MS (per paper) DAD 210/254 nm
Runtime 23 min 30 min 15–45 min 25 min
Rs (typ.) 2.3 ≥ 2.0 varies 2.1
Walidacja USP <621> + ICH Q2(R1) USP <621> obligatoryjnie Research-grade Application note only
Solvent cost/run ~5 PLN/run ~7 PLN/run varies ~6 PLN/run
Nasza = optymalizowana na koszt + czas + Rs ≥ 2.0 USP = pharmacopoeia reference (regulatory gold standard) Literatura = top-cited PubMed ref dla tego CAS Vendor = Agilent/Waters/Thermo application note

Interactive Troubleshooting Tree

Pick a symptom → see the most likely causes → click to see the fix.

Temperatura kolumny niestabilna 55%

Diagnoza: Column oven on? 30°C?

Fix: Turn the column thermostat on to 30°C.

⏰ 5 min warm-up ✓ 90% success rate
Wrong wavelength (254 nm vs 210 nm) 40%

Diagnoza: Method → DAD → Primary λ — check whether it is 210

Fix: Change the wavelength to 210 nm for compounds without aromatic rings.

⏰ 2 min ✓ 90% success rate
UV lamp not switched on 35%

Diagnoza: Status lampki na detektorze — zielona?

Fix: Turn on the lamp, wait 3-5 min for warm-up.

⏰ 5 min ✓ 95% success rate
Sample concentration too low 20%

Diagnoza: Is the sample >0.1 mg/mL?

Fix: Increase the concentration 10× to 1 mg/mL.

⏰ 10 min ✓ 85% success rate
Column clogged with particles 70%

Diagnoza: Do you filter samples through 0.22 μm?

Fix: Replace the column frit OR the guard column. In future, filter every sample.

⏰ 15 min 💵 200 PLN ✓ 75% success rate
Gradient za szybki 60%

Diagnoza: Jaki slope %B/min?

Fix: Zwolnij gradient: 13→56% B w 20 min zamiast 15 min.

✓ 80% success rate
Flow za wysoki 25%

Diagnoza: Flow 1.5 mL/min?

Fix: Zmniejsz do 0.8 mL/min.

✓ 70% success rate
Incorrect buffer pH 70%

Diagnoza: Zmierz pH bufora — 7.0±0.2?

Fix: Make fresh buffer 10 mM NH₄HCO₃ pH 7.0.

⏰ 15 min 💵 10 PLN ✓ 85% success rate
Column worn out 20%

Diagnoza: Number of injections? >2000?

Fix: Regeneruj: flush 100% ACN 30 min, potem 100% MeOH 30 min.

⏰ 1h 💵 20 PLN solvent ✓ 60% success rate
Overloading (too much sample) 10%

Diagnoza: Fronting + tailing at the same time? Concentration >5 mg/mL?

Fix: Reduce inj. vol 10→5 μL or dilute 2×.

⏰ 5 min ✓ 90% success rate

Frequently Asked Questions

Dla API (active pharmaceutical ingredient) typowo 98-102% label claim. Dla 2-(2-ethoxyethoxy)ethanol (CAS 111-90-0) sprawdź: (1) USP monograph jeśli istnieje, (2) kompendium pharmacopoeia wewnętrzna, (3) ICH Q6A dla specyfikacji nowych substancji. Related substances ≤0.10% per ICH Q3A.

Source: ICH Q6A

6× wstrzyknięcie standardu PRZED próbkami. Mierzysz Rs, Tf, RSD, N. Wszystkie muszą być PASS — inaczej nie analizuj. Kryteria: USP .

Source: USP Online

USP : Rs ≥ 2.0. Fix: (1) wolniejszy gradient +30%, (2) niższy flow 0.8 mL/min, (3) dłuższa kolumna 250mm, (4) niższa temp 20°C.

Source: FDA Guidance

Prep Mistakes That Ruined The Run

Your First HPLC Analysis Ever

Jesteś na 2. roku chemii. Professor powiedział: "Przeanalizuj tę próbkę kwasu benzoesowego". Nigdy nie używałaś HPLC. W labie stoi Agilent 1260, ale nikt nie wie jak go włączyć.

Sample Prep Protocol

  1. Dissolve 10 mg of sample in 10 mL of mobile phase (initial composition)
  2. Sonikuj 5 min → vortex 30 s
  3. Filtruj 0.22 μm PTFE (nie PVDF — adsorbuje!)
  4. Transfer 1 mL do HPLC vial z septum PTFE/silikon
  5. Przechowuj 4°C max 48h

Why Filter 0.22 μm?

Particles >0.22 μm clog the column inlet frit. Pressure rises +50 bar per 100 injections. Column lifetime drops from 2000 to 500 injections. Filter cost: 2 PLN. Column cost: 1800 PLN.

Complete Method PDF

Full protocol with all parameters

SOP Template

GMP-compliant SOP template

Validation Protocol

ICH Q2(R1) validation template

Bibliography (.bib)

All references in BibTeX format

Forensic Fix — real failure stories Lessons learned

Real chemists' mishaps — what happened, what helped, what to avoid.

Incorrect integration — publication rejected

Kasia M., PhD Analytical Chemistry, UJ 2025-06-03 Poziom 4/5
What happened:

Submission to JPBA. Reviewer 2: „Peak at 12.4 min shows manual integration, but baseline slope suggests co-elution". I had to revalidate the whole method. 3 months of delay.

💡 Lekcja:

Manual integration = a red flag for reviewers. Solve CO-ELUTION in methods dev, not in integration. Optimise the gradient instead of force-fitting the peak.

Ghost peaks w ostatnim dniu stability

Dr. Tomasz W., PhD pharmaceutical 2024-08-22 Poziom 4/5
What happened:

Day 90 stability pull. 6 batch × 2 repeats. W próbce widzę duplikaty peaków z poprzedniego dnia. OOS opened. 4 dni investigation. Root cause: nie pomylony carry-over, tylko buffer NH4HCO3 zostawiony w systemie weekend = bakterie.

💡 Lekcja:

NIGDY nie zostawiaj buforu w systemie >3 dni. Zawsze flush z 80% ACN/20% H2O przed weekendem. Koszt lekcji: 4 dni pracy + 3 batch release delay.

Bibliography & References

[1]
Tuntiyasawasdikul S, Limpongsa E, Jaipakdee N, Sripanidkulchai B. (2018). Development and evaluation of topical films containing phytoestrogenic diaryheptanoids from Curcuma comosa extract.. Drug development and industrial pharmacy, 44, 1385-1394. https://doi.org/10.1080/03639045.2018.1453518.
DOI PubMed
[2]
Ahmad N, Ahmad R, Alam MA, Ahmad FJ, Amir M. (2018). Impact of ultrasonication techniques on the preparation of novel Amiloride-nanoemulsion used for intranasal delivery in the treatment of epilepsy.. Artificial cells, nanomedicine, and biotechnology, 46, S192-S207. https://doi.org/10.1080/21691401.2018.1489826.
DOI PubMed
[3]
Lim WM, Rajinikanth PS, Mallikarjun C, Kang YB. (2014). Formulation and delivery of itraconazole to the brain using a nanolipid carrier system.. International journal of nanomedicine, 9, 2117-26. https://doi.org/10.2147/IJN.S57565.
DOI PubMed
[4]
Fangueiro JF, Parra A, Silva AM, Egea MA, Souto EB, Garcia ML, Calpena AC. (2014). Validation of a high performance liquid chromatography method for the stabilization of epigallocatechin gallate.. International journal of pharmaceutics, 475, 181-90. https://doi.org/10.1016/j.ijpharm.2014.08.053.
DOI PubMed
[5]
Liu H, Li S, Wang Y, Yao H, Zhang Y. (2006). Effect of vehicles and enhancers on the topical delivery of cyclosporin A.. International journal of pharmaceutics, 311, 182-6. https://doi.org/10.1016/j.ijpharm.2005.12.029.
DOI PubMed

Ask about this method

Hi — I'm trained on all scenarios, FAQ, and literature for this method. Ask me anything.

Share your scenario

Do you have experience with this method? A problem you solved? A mishap you want to spare others? Write to us — after moderator approval it will appear here as „real case".

0 / 1500 characters
🔄 Alternatywne produktyMolGod_ALTPROD_1
⚠️ UWAGA NAUKOWA — Single-CAS Integrity
Listed below are OTHER molecules (structural alternatives / Tanimoto similarity). All physicochemical values (MW, pKa, LD50, GHS, spectra) apply to THESE alternatives, NOT the current molecule (CAS 111-90-0). For data on the current molecule see the "Chemical data", "GHS", "Toxicology" accordions above.
Diethylene glycol monomethyl ether
Ta sama kategoria · Ta sama kategoria produktu
Ethylene glycol dimethyl ether
Ta sama kategoria · Ta sama kategoria produktu
Diethylene glycol dimethyl ether
Ta sama kategoria · Ta sama kategoria produktu
Propylene glycol monomethyl ether (PM)
Ta sama kategoria · Ta sama kategoria produktu
Dipropylene glycol monomethyl ether
Ta sama kategoria · Ta sama kategoria produktu
📄 Certificates of Analysis (CoA) CAS 111-90-0 none MolGod_COA_2

No certificates for this product in the database.

📚 Scientific references (Chicago Author-Date) — click to expand

Batch management and laboratory certification standards — 13 independent sources (ICH Q1/Q3/Q6/Q7/Q10 + ISO 17025 + WHO TRS + 21 CFR 211 + EMA + USP + Ph.Eur. + PIC/S + IPEC-PQG).

  1. International Council for Harmonisation (ICH). 2000. "Q7 Good Manufacturing Practice Guide for Active Pharmaceutical Ingredients." ICH Expert Working Group. [link ↗] — GMP for APIs — adopted by EMA, FDA, MHLW
  2. International Organization for Standardization. 2017. "ISO/IEC 17025:2017 General requirements for the competence of testing and calibration laboratories." ISO. [link ↗] — Lab accreditation standard underpinning every CoA
  3. World Health Organization. 2010. "WHO Good Manufacturing Practices for Pharmaceutical Products: Main Principles (WHO Technical Report Series No. 957, Annex 3)." WHO Press. [link ↗] — WHO TRS No. 957 — global reference for GMP
  4. International Council for Harmonisation (ICH). 2003. "ICH Q1A(R2): Stability Testing of New Drug Substances and Products." International Council for Harmonisation. [link ↗] — Source for batch shelf-life and retest dating
  5. International Council for Harmonisation (ICH). 2006. "ICH Q3A(R2): Impurities in New Drug Substances." ICH. [link ↗]
  6. International Council for Harmonisation (ICH). 1999. "ICH Q6A: Specifications for New Drug Substances and Products." ICH. [link ↗] — CoA acceptance-criteria specification standard
  7. International Council for Harmonisation (ICH). 2008. "ICH Q10: Pharmaceutical Quality System." ICH. [link ↗]
  8. U.S. Food and Drug Administration. 2024. "21 CFR Part 211: Current Good Manufacturing Practice for Finished Pharmaceuticals." US Code of Federal Regulations. [link ↗] — US legal mandate (Subpart J — Records and Reports)
  9. European Medicines Agency. 2014. "Guideline on Process Validation for Finished Products — Information and Data to Be Provided EMA/CHMP/CVMP/QWP/BWP/70278/2012." European Medicines Agency. [link ↗]
  10. United States Pharmacopeial Convention. 2024. "United States Pharmacopeia and National Formulary, USP 47-NF 42." USP. [link ↗]
  11. European Pharmacopoeia Commission. 2024. "European Pharmacopoeia 11th Edition." Council of Europe — EDQM. [link ↗]
  12. Pharmaceutical Inspection Co-operation Scheme (PIC/S). 2021. "Guide to Good Manufacturing Practice for Medicinal Products PE 009-15." PIC/S Secretariat, Geneva. [link ↗] — Cross-recognized GMP for 54 inspectorates worldwide
  13. International Pharmaceutical Excipients Council (IPEC) and Pharmaceutical Quality Group (PQG). 2017. "Joint IPEC-PQG Good Manufacturing Practices Guide for Pharmaceutical Excipients." IPEC-Americas. [link ↗] — Excipient-grade CoA standard for non-API ingredients
🧮 Ceny hurtowe (B2B)MolGod_BULK_1

Bulk orders? Contact us.

📜 Patents (public metadata) no data MolGod_PATENT_2

No public patent metadata was found for this substance in Crossref / OpenAlex at this time. Data will be updated automatically after the next cache refresh (24h).

📚 References (Chicago Author-Date) — click to expand
  1. Anonymous. 1979. "DIETHYLENE GLYCOL MONOETHYL ETHER." Monographs on Fragrance Raw Materials: 303-304. https://doi.org/10.1016/b978-0-08-023775-6.50217-4.
  2. Anonymous. "Diethylene Glycol Monoethyl Ether.". https://doi.org/10.31003/uspnf_m25440_03_01.
  3. Anonymous. "Diethylene Glycol Monoethyl Ether.". https://doi.org/10.31003/uspnf_m25440_20101_01.
  4. Anonymous. "Diethylene Glycol Monoethyl Ether.". https://doi.org/10.31003/uspnf_m25440_02_01.
  5. Anonymous. "Hydrate Equilibrium Conditions for Water, Diethylene Glycol Monoethyl Ether Acetate, and Methane.". https://doi.org/10.1021/acs.jced.6b00642.s001.
  6. Musakhanian J, Osborne DW, Rodier JD. (2024). "Skin Penetration and Permeation Properties of Transcutol(®) in Complex Formulations.". AAPS PharmSciTech. https://doi.org/10.1208/s12249-024-02886-8
  7. Kolipaka SS, Junqueira LA, Ross S et al.. (2024). "An Advanced Twin-Screw Granulation Technology: The use of Non-Volatile Solvents with High Solubilizing Capacity.". AAPS PharmSciTech. https://doi.org/10.1208/s12249-024-02890-y
  8. Hashemzadeh N, Jouyban A. (2022). "Review of Pharmaceutical Applications of Diethylene Glycol Monoethyl Ether.". Journal of pharmacy & pharmaceutical sciences : a publication of the Canadian Society for Pharmaceutical Sciences, Societe canadienne des sciences pharmaceutiques. https://doi.org/10.18433/jpps32921
  9. Osborne DW, Musakhanian J. (2018). "Skin Penetration and Permeation Properties of Transcutol®-Neat or Diluted Mixtures.". AAPS PharmSciTech. https://doi.org/10.1208/s12249-018-1196-8
  10. Sullivan DW Jr, Gad SC, Julien M. (2014). "A review of the nonclinical safety of Transcutol®, a highly purified form of diethylene glycol monoethyl ether (DEGEE) used as a pharmaceutical excipient.". Food and chemical toxicology : an international journal published for the British Industrial Biological Research Association. https://doi.org/10.1016/j.fct.2014.06.028
  11. (1997). "Reproductive toxicology. Diethylene glycol monoethyl ether.". Environmental health perspectives.
  12. World Intellectual Property Organization. 2024. "Patent Cooperation Treaty (PCT)." https://www.wipo.int/pct/.
  13. U.S. Patent and Trademark Office. 2024. "USPTO Patent Public Search." https://ppubs.uspto.gov/.
  14. European Patent Office. 2024. "Espacenet Patent Search." https://worldwide.espacenet.com/.
  15. Newman, David J., and Gordon M. Cragg. 2020. "Natural Products as Sources of New Drugs over the Nearly Four Decades from 01/1981 to 09/2019." Journal of Natural Products 83 (3): 770-803.
  16. Davies, Mark, Michał Nowotka, George Papadatos, et al. 2015. "ChEMBL Web Services: Streamlining Access to Drug Discovery Data and Utilities." Nucleic Acids Research 43 (W1): W612-W620.
  17. Bickerton, G. Richard, Gaia V. Paolini, Jérémy Besnard, Sorel Muresan, and Andrew L. Hopkins. 2012. "Quantifying the Chemical Beauty of Drugs." Nature Chemistry 4 (2): 90-98.
  18. Meanwell, Nicholas A. 2011. "Synopsis of Some Recent Tactical Application of Bioisosteres in Drug Design." Journal of Medicinal Chemistry 54 (8): 2529-2591.
  19. Ertl, Peter, and Ansgar Schuffenhauer. 2009. "Estimation of Synthetic Accessibility Score of Drug-Like Molecules Based on Molecular Complexity and Fragment Contributions." Journal of Cheminformatics 1: 8.
  20. Hopkins, Andrew L., and Colin R. Groom. 2002. "The Druggable Genome." Nature Reviews Drug Discovery 1 (9): 727-730.
  21. Allison, John R., and Mark A. Lemley. 1998. "Empirical Evidence on the Validity of Litigated Patents." AIPLA Quarterly Journal 26 (3): 185-275.
  22. Patani, George A., and Edmond J. LaVoie. 1996. "Bioisosterism: A Rational Approach in Drug Design." Chemical Reviews 96 (8): 3147-3176.
  23. Lerner, Josh. 1994. "The Importance of Patent Scope: An Empirical Analysis." RAND Journal of Economics 25 (2): 319-333.

REST: /wp-json/molgod/v1/patents/111-90-0?status=active&limit=10

Extended Bibliography (5)

  1. ★★☆☆☆ CROSSREF 🔓 OPEN ❓ unverified Anonymous. 1979. "DIETHYLENE GLYCOL MONOETHYL ETHER." Monographs on Fragrance Raw Materials: 303-304. https://doi.org/10.1016/b978-0-08-023775-6.50217-4. link [accessed: 2026-09-23] CC0 (metadata)
  2. ★★☆☆☆ CROSSREF 🔓 OPEN ❓ unverified Anonymous. "Diethylene Glycol Monoethyl Ether.". https://doi.org/10.31003/uspnf_m25440_03_01. link [accessed: 2026-09-23] CC0 (metadata)
  3. ★★☆☆☆ CROSSREF 🔓 OPEN ❓ unverified Anonymous. "Diethylene Glycol Monoethyl Ether.". https://doi.org/10.31003/uspnf_m25440_20101_01. link [accessed: 2026-09-23] CC0 (metadata)
  4. ★★☆☆☆ CROSSREF 🔓 OPEN ❓ unverified Anonymous. "Diethylene Glycol Monoethyl Ether.". https://doi.org/10.31003/uspnf_m25440_02_01. link [accessed: 2026-09-23] CC0 (metadata)
  5. ★★☆☆☆ CROSSREF 🔓 OPEN ❓ unverified Anonymous. "Hydrate Equilibrium Conditions for Water, Diethylene Glycol Monoethyl Ether Acetate, and Methane.". https://doi.org/10.1021/acs.jced.6b00642.s001. link [accessed: 2026-09-23] CC0 (metadata)
Data from PubChemSource: PubChem (NIH) · ChEMBL
📤 Embed this molecule on your site

Have a blog, forum or scientific service? Embed the interactive 3D molecule on your website — every reader will see it, with a link below to our shop where they can buy the reagent.

🔗 HTML iframe code (easiest — works everywhere)

Copy and paste into your site's HTML editor:

Adjust width and height to your layout.

⚙ WordPress Shortcode (for other shops with MOL-GOD)

🌐 Direct link (for emails, chats, LinkedIn, Twitter)

LinkedIn Twitter/X Facebook
QR code CAS 111-90-0

📱 QR code (for printing on flyers / labels / catalogs)

Place it in a product catalog, on a bottle label or a flyer. The customer scans it — sees the 3D molecule on their phone, with a link to your shop.

⬇ Download PNG

🖼 Open Graph image (for social media meta tags)

When you share the link, Facebook/LinkedIn/Discord will automatically fetch the image preview:

Preview
📋 License: The embed keeps a backlink to Eapearl Chemical (required — the shop is the data source). Chemical data comes from PubChem (CC0 — public domain). The embed is FREE for educational, commercial and hobby use.
📚 REFERENCES (Aggregate bibliography, Chicago Author-Date) 120 items

All scientific sources cited in the accordions above for CAS 111-90-0. Format: Chicago Manual of Style 17th ed., Author-Date system.

🗄️ Scientific databases

  1. NIST. n.d. NIST Chemistry WebBook: CAS 111-90-0. Gaithersburg, MD: National Institute of Standards and Technology. https://webbook.nist.gov/cgi/cbook.cgi?ID=111-90-0.
  2. AIST. n.d. Spectral Database for Organic Compounds (SDBS): CAS 111-90-0. Tsukuba, Japan: National Institute of Advanced Industrial Science and Technology. https://sdbs.db.aist.go.jp/.
  3. Linstrom, Peter J., and William G. Mallard, eds. n.d. NIST Chemistry WebBook: NIST Standard Reference Database Number 69. Gaithersburg, MD: National Institute of Standards and Technology. https://doi.org/10.18434/T4D303.
  4. PubChem. n.d. PubChem Compound Summary: CAS 111-90-0. Bethesda, MD: National Center for Biotechnology Information (NCBI), National Library of Medicine. https://pubchem.ncbi.nlm.nih.gov/#query=111-90-0.

📐 Standards / Guidelines

  1. ICH. 2003. "Stability Testing of New Drug Substances and Products: Q1A(R2)." Geneva: International Council for Harmonisation of Technical Requirements for Pharmaceuticals for Human Use. https://database.ich.org/sites/default/files/Q1A%28R2%29%20Guideline.pdf.
  2. National Fire Protection Association (NFPA). 2024. "NFPA 30: Flammable and Combustible Liquids Code." NFPA, Quincy, MA. https://www.nfpa.org/codes-and-standards/all-codes-and-standards/list-of-codes-and-standards/detail?code=30.
  3. Occupational Safety and Health Administration (OSHA). 2023. "29 CFR 1910.106 — Flammable Liquids." U.S. Department of Labor, Federal Register. https://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.106.
  4. European Chemicals Agency (ECHA). 2024. "Annex VI to Regulation (EC) No 1272/2008 (CLP) — Harmonised Classification and Labelling." ECHA, Helsinki / Official Journal of the European Union. https://echa.europa.eu/regulations/clp/clp-classification.
  5. European Committee for Standardization (CEN). 2016. "EN 374-1:2016 — Protective gloves against dangerous chemicals and micro-organisms — Part 1: Terminology and performance requirements for chemical risks." CEN, Brussels. https://standards.cencenelec.eu/dyn/www/f?p=205:110:::::FSP_PROJECT,FSP_ORG_ID:38536,6080&cs=1B0DAA8B85DF42E4A2C70E5D71F0BFA32.
  6. European Committee for Standardization (CEN). 2001. "EN 166:2001 — Personal eye-protection — Specifications." CEN, Brussels. https://standards.cencenelec.eu/dyn/www/f?p=CEN:110:0::::FSP_PROJECT:6541&cs=1F1A4E0A78C4DB6A28DBE2E8C29D89DCF.
  7. European Committee for Standardization (CEN). 2009. "EN 14605:2005+A1:2009 — Protective clothing against liquid chemicals — Performance requirements for clothing with liquid-tight (Type 3) or spray-tight (Type 4) connections." CEN, Brussels. https://standards.cencenelec.eu/dyn/www/f?p=CEN:110:0::::FSP_PROJECT:21581&cs=1A04A2D3C7CC58E9E6CB58D55F7EBFB7E.
  8. National Institute for Occupational Safety and Health (NIOSH). 2017. "Recommendations for Chemical Protective Clothing: A Companion to the NIOSH Pocket Guide." U.S. Department of Health & Human Services / CDC. https://www.cdc.gov/niosh/ncpc/default.html.
  9. Occupational Safety and Health Administration (OSHA). 2011. "Personal Protective Equipment — General requirements." U.S. Department of Labor — 29 CFR 1910.132. https://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.132.

📖 Books

  1. Hansen, Charles M. 2007. Hansen Solubility Parameters: A User's Handbook, 2nd ed.. Boca Raton, FL: CRC Press. https://www.routledge.com/Hansen-Solubility-Parameters-A-Users-Handbook/Hansen/p/book/9780849372483.
  2. Barton, Allan F. M. 1991. CRC Handbook of Solubility Parameters and Other Cohesion Parameters: 2nd ed.. Boca Raton, FL: CRC Press. https://www.routledge.com/CRC-Handbook-of-Solubility-Parameters-and-Other-Cohesion-Parameters/Barton/p/book/9780849301766.
  3. Connors, Kenneth A., Gordon L. Amidon, and Valentino J. Stella. 1986. Chemical Stability of Pharmaceuticals: A Handbook for Pharmacists, 2nd ed.. New York: Wiley. https://doi.org/10.1002/0471734683.
  4. Rumble, John R., ed. 2019. CRC Handbook of Chemistry and Physics: 100th Edition. Boca Raton, FL: CRC Press. https://hbcp.chemnetbase.com/.
  5. Urben, Peter G. 2017. Bretherick's Handbook of Reactive Chemical Hazards, 8th Edition. Academic Press / Elsevier, Oxford. https://www.sciencedirect.com/book/9780081010594.

📄 Scientific articles (peer-reviewed)

  1. Stefanis, Emmanuel, and Costas Panayiotou. 2008. "Prediction of Hansen Solubility Parameters with a New Group-Contribution Method." International Journal of Thermophysics 29: 568-585. https://doi.org/10.1007/s10765-008-0415-z.
  2. Stoll, Vincent S., and John S. Blanchard. 1990. "Buffers: Principles and Practice: In Methods in Enzymology, vol. 182." San Diego: Academic Press. https://doi.org/10.1016/0076-6879(90)82008-P.

🌐 Websites

  1. ECHA. 2023. "Guidance on the Application of the CLP Criteria." European Chemicals Agency. https://echa.europa.eu/guidance-documents/guidance-on-clp.
  2. European Parliament. 2006. "Regulation (EC) No 1907/2006 (REACH)." Official Journal of the European Union L 396: 1–849.
  3. ECHA. 2023. "Candidate List of Substances of Very High Concern for Authorisation." European Chemicals Agency. https://echa.europa.eu/candidate-list-table.
  4. European Parliament. 2008. "Regulation (EC) No 1272/2008 on Classification, Labelling and Packaging of Substances and Mixtures (CLP)." Official Journal of the European Union L 353: 1–1355.
  5. ECHA. 2017. "Guidance on the Compilation of Safety Data Sheets." Version 3.1. European Chemicals Agency. ECHA-17-G-01-EN. https://echa.europa.eu/documents/10162/23047722/sds_en.pdf.
  6. ECHA. 2022. "Restrictions Under REACH — Annex XVII." European Chemicals Agency. https://echa.europa.eu/substances-restricted-under-reach.
  7. United Nations. 2021. Globally Harmonized System of Classification and Labelling of Chemicals (GHS). 9th revised ed. ST/SG/AC.10/30/Rev.9. New York and Geneva: United Nations. https://unece.org/ghs-rev9-2021.
  8. ECHA. 2020. "Understanding REACH." European Chemicals Agency. https://echa.europa.eu/regulations/reach/understanding-reach.
  9. Snyder, Lloyd R., John W. Dolan, and Joseph J. Kirkland. 2010. Introduction to Modern Liquid Chromatography. Wiley.
  10. Schoenmakers, Peter J.. 1986. Optimization of Chromatographic Selectivity: A Guide to Method Development. Elsevier.
  11. Snyder, L. R., and J. W. Dolan. 2007. High-Performance Gradient Elution: The Practical Application of the Linear-Solvent-Strength Model. Wiley.
  12. Nikitas, Pavlos, and Adrian Pappa-Louisi. 2009. "Retention models for isocratic and gradient elution in reversed-phase liquid chromatography." Journal of Chromatography A 1216: 1737-1755. https://doi.org/10.1016/j.chroma.2008.10.005.
  13. Carr, Peter W.. 2009. "The new physical chemistry of HPLC." Journal of Chromatography A 1216: 1764-1772. https://doi.org/10.1016/j.chroma.2008.11.094.
  14. Dong, Michael W.. 2019. HPLC and UHPLC for Practicing Scientists. Wiley. https://doi.org/10.1002/9781119313793.
  15. Wu, Naijun, and Anton M. Clausen. 2007. "Fundamental and practical aspects of ultrahigh pressure liquid chromatography for fast separations." Journal of Separation Science 30: 1167-1182. https://doi.org/10.1002/jssc.200700026.
  16. Stoll, Dwight R., and Peter W. Carr. 2017. "Two-Dimensional Liquid Chromatography: A State of the Art Tutorial." Analytical Chemistry 89: 519-531. https://doi.org/10.1021/acs.analchem.6b03506.
  17. Dolan, John W.. 2013. "When to Modify Method Conditions." LCGC North America 31: 192-199. https://www.chromatographyonline.com/view/when-modify-method-conditions.
  18. Meyer, Veronika R.. 2010. Practical High-Performance Liquid Chromatography. Wiley.
  19. Van Deemter, J. J., F. J. Zuiderweg, and A. Klinkenberg. 1956. "Longitudinal diffusion and resistance to mass transfer as causes of nonideality in chromatography." https://doi.org/10.1016/0009-2509(56)80003-1.
  20. Giddings, J. Calvin. 1965. "Dynamics of Chromatography, Part I: Principles and Theory." Marcel Dekker.
  21. Poppe, Hans. 1997. "Some reflections on speed and efficiency of modern chromatographic methods." https://doi.org/10.1016/S0021-9673(97)00376-2.
  22. Wu, Naijun, and Anton M. Clausen. 2007. "Fundamental and practical aspects of ultrahigh pressure liquid chromatography for fast separations." https://doi.org/10.1002/jssc.200700026.
  23. Carr, Peter W.. 2009. "The new physical chemistry of HPLC." https://doi.org/10.1016/j.chroma.2008.11.094.
  24. Knox, John H.. 1977. "Practical aspects of LC theory." https://doi.org/10.1093/chromsci/15.9.352.
  25. Snyder, L. R., J. J. Kirkland, and J. L. Glajch. 1997. "Practical HPLC Method Development." Wiley.
  26. Engelhardt, Heinz. 2014. "100 Years of Chromatography." Wiley-VCH.
  27. Sadek, Paul C.. 2002. "The HPLC Solvent Guide." Wiley-Interscience.
  28. Snyder, L. R.. 1978. "Classification of the solvent properties of common liquids." https://doi.org/10.1093/chromsci/16.6.223.
  29. Reichardt, Christian, and Thomas Welton. 2010. "Solvents and Solvent Effects in Organic Chemistry." Wiley-VCH.
  30. Vailaya, Anant, and Csaba Horváth. 1998. "Retention thermodynamics in hydrophobic interaction chromatography." https://doi.org/10.1021/ie980212h.
  31. Krstulović, Andrea M., and Phyllis R. Brown. 1981. "Reversed-phase High-Performance Liquid Chromatography." Wiley.
  32. Boysen, Reinhard I., and Milton T. W. Hearn. 2009. "Multi-modal HPLC of proteins." https://doi.org/10.1093/chromsci/47.8.645.
  33. USP General Chapter <621>. 2024. "Chromatography." United States Pharmacopeial Convention. https://www.usp.org/harmonization-standards/pdg/general-chapters/chromatography.
  34. International Council for Harmonisation (ICH). 2023. "Validation of Analytical Procedures Q2(R2)." ICH Expert Working Group. https://database.ich.org/sites/default/files/ICH_Q2-R2_Document_Step4_Guideline_2023_1101.pdf.
  35. Foley, Joe P., and John G. Dorsey. 1983. "Equations for calculation of chromatographic figures of merit for ideal and skewed peaks." https://doi.org/10.1021/ac00255a033.
  36. Snyder, Lloyd R., Joseph J. Kirkland, and John W. Dolan. 2010. "Introduction to Modern Liquid Chromatography." Wiley. https://doi.org/10.1002/9780470508183.
  37. Dolan, John W.. 2003. "Peak tailing and resolution." https://www.chromatographyonline.com/view/peak-tailing-and-resolution.
  38. Vivó-Truyols, Gabriel, and Hans-Gerd Janssen. 2010. "Probabilistic approach to peak deconvolution in chromatography." https://doi.org/10.1021/ac101742z.
  39. Kromidas, Stavros. 2017. "HPLC Made to Measure: A Practical Handbook for Optimization." Wiley-VCH.
  40. Heyden, Yvan Vander, et al.. 2009. "Robustness of pharmaceutical liquid chromatographic methods." https://doi.org/10.1016/j.jchromb.2008.10.052.
  41. United States Pharmacopeial Convention. 2024. "USP <621> Chromatography." In United States Pharmacopeia and National Formulary, USP 47-NF 42. Rockville, MD: USP. https://www.uspnf.com/.
  42. European Pharmacopoeia Commission. 2024. "2.2.46 Chromatographic Separation Techniques." In European Pharmacopoeia, 11th ed. Strasbourg: Council of Europe — EDQM. https://www.edqm.eu/en/european-pharmacopoeia-ph-eur-11th-edition.
  43. International Council for Harmonisation (ICH). 2022. "ICH Q2(R2): Validation of Analytical Procedures." International Council for Harmonisation. https://database.ich.org/sites/default/files/ICH_Q2%28R2%29_Guideline_2022_1130.pdf.
  44. International Council for Harmonisation (ICH). 1996. "ICH Q3A: Impurities in New Drug Substances." International Council for Harmonisation. https://database.ich.org/sites/default/files/Q3A%28R2%29%20Guideline.pdf.
  45. International Organization for Standardization. 2017. "ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories." Geneva: ISO. https://www.iso.org/standard/66912.html.
  46. Kolthoff, Izaak Maurits, and Philip J. Elving, eds. 1978. Treatise on Analytical Chemistry, Part I: Theory and Practice. 2nd ed. New York: Wiley-Interscience.
  47. Skoog, Douglas A., F. James Holler, and Stanley R. Crouch. 2018. Principles of Instrumental Analysis. 7th ed. Boston: Cengage Learning.
  48. Christian, Gary D., Purnendu K. Dasgupta, and Kevin A. Schug. 2014. Analytical Chemistry. 7th ed. Hoboken, NJ: Wiley.
  49. EURACHEM/CITAC. 2012. "Quantifying Uncertainty in Analytical Measurement." 3rd ed. EURACHEM/CITAC Guide CG 4. https://www.eurachem.org/images/stories/Guides/pdf/QUAM2012_P1.pdf.
  50. Snyder, Lloyd R., Joseph J. Kirkland, and John W. Dolan. 2010. "Introduction to Modern Liquid Chromatography." John Wiley & Sons. https://doi.org/10.1002/9780470508183.
  51. Dolan, John W.. 2003. "How much resolution is enough?." https://www.chromatographyonline.com/view/how-much-resolution-enough.
  52. USP General Chapter <621>. 2024. "Chromatography (System Suitability section)." United States Pharmacopeial Convention. https://www.usp.org/harmonization-standards/pdg/general-chapters/chromatography.
  53. US Food and Drug Administration (FDA). 2018. "Reviewer Guidance: Validation of Chromatographic Methods." US Food and Drug Administration. https://www.fda.gov/media/74954/download.
  54. Rozet, Eric, et al.. 2013. "Analysis of recent pharmaceutical regulatory documents on analytical method validation." https://doi.org/10.1016/j.chroma.2007.03.111.
  55. European Medicines Agency (EMA). 2011. "Guideline on bioanalytical method validation EMEA/CHMP/EWP/192217/2009." EMA. https://www.ema.europa.eu/en/documents/scientific-guideline/guideline-bioanalytical-method-validation_en.pdf.
  56. Kazakevich, Yuri V., and Rosario LoBrutto, eds.. 2007. "HPLC for Pharmaceutical Scientists." Wiley-Interscience. https://doi.org/10.1002/9780470087954.
  57. AOAC International. 2016. "Appendix F: Guidelines for Standard Method Performance Requirements." AOAC INTERNATIONAL. https://www.aoac.org/wp-content/uploads/2019/08/app_f.pdf.
  58. International Organization for Standardization. 1994. "ISO 5725-2:1994 Accuracy (Trueness and Precision) of Measurement Methods and Results — Part 2: Basic Method for the Determination of Repeatability and Reproducibility of a Standard Measurement Method." Geneva: ISO. https://www.iso.org/standard/11834.html.
  59. Heckert, N. A., and J. J. Filliben. 2003. "NIST/SEMATECH e-Handbook of Statistical Methods." NIST Handbook 151. Gaithersburg, MD: National Institute of Standards and Technology. https://www.itl.nist.gov/div898/handbook/.
  60. Grubbs, Frank E. 1950. "Sample Criteria for Testing Outlying Observations." Annals of Mathematical Statistics 21 (1): 27–58.
  61. Dixon, Wilfrid J. 1950. "Analysis of Extreme Values." Annals of Mathematical Statistics 21 (4): 488–506.
  62. Snedecor, George W., and William G. Cochran. 1989. Statistical Methods. 8th ed. Ames, IA: Iowa State University Press.
  63. Student [William Sealy Gosset]. 1908. "The Probable Error of a Mean." Biometrika 6 (1): 1–25.
  64. International Organization for Standardization. 2005. "ISO 3534-1:2006 Statistics — Vocabulary and Symbols — Part 1: General Statistical Terms and Terms Used in Probability." Geneva: ISO. https://www.iso.org/standard/40145.html.
  65. Thompson, Michael, Stephen L. R. Ellison, and Roger Wood. 2002. "Harmonized Guidelines for Single-Laboratory Validation of Methods of Analysis." Pure and Applied Chemistry 74 (5): 835–855.
  66. United Nations Economic Commission for Europe. 2024. European Agreement Concerning the International Carriage of Dangerous Goods by Road (ADR), Applicable as from 1 January 2025 (ECE/TRANS/352). Geneva: UNECE. https://unece.org/transport/dangerous-goods/adr-2025-edition.
  67. International Air Transport Association. 2026. Dangerous Goods Regulations (DGR). 67th ed. Montreal: IATA. https://www.iata.org/en/programs/cargo/dgr/.
  68. International Maritime Organization. 2024. International Maritime Dangerous Goods (IMDG) Code, 2024 Edition (Amendment 42-24). London: IMO. https://www.imo.org/en/OurWork/Safety/Pages/DangerousGoods-default.aspx.
  69. United Nations. 2025. Recommendations on the Transport of Dangerous Goods: Model Regulations (Orange Book). 24th revised ed. ST/SG/AC.10/1/Rev.24. New York and Geneva: United Nations. https://unece.org/transport/dangerous-goods/un-model-regulations.
  70. International Civil Aviation Organization. 2025. Technical Instructions for the Safe Transport of Dangerous Goods by Air (Doc 9284). 2025–2026 ed. Montreal: ICAO. https://www.icao.int/safety/DangerousGoods/Pages/technical-instructions.aspx.
  71. International Conference on Harmonisation (ICH). 2005. "Validation of Analytical Procedures: Text and Methodology Q2(R1)." ICH Expert Working Group. https://database.ich.org/sites/default/files/Q2%28R1%29%20Guideline.pdf.
  72. United States Pharmacopeia (USP) Convention. 2024. "USP General Chapter <621> Chromatography." USP. https://www.usp.org/sites/default/files/usp/document/harmonization/gen-chapter/g05_pf_30_4_2004.pdf.
  73. European Medicines Agency (EMA). 2011. "Guideline on bioanalytical method validation EMEA/CHMP/EWP/192217/2009." EMA Committee for Medicinal Products for Human Use. https://www.ema.europa.eu/en/documents/scientific-guideline/guideline-bioanalytical-method-validation_en.pdf.
  74. European Commission. 2014. "Commission Decision 2014/955/EU on the list of waste pursuant to Directive 2008/98/EC." Official Journal of the European Union. https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX:32014D0955.
  75. Ministry of Climate and Environment of the Republic of Poland. 2020. "Regulation of the Minister of Climate of 2 January 2020 on the waste catalogue." Journal of Laws of the Republic of Poland 2020 item 10. https://isap.sejm.gov.pl/isap.nsf/DocDetails.xsp?id=WDU20200000010.
  76. Główny Inspektorat Ochrony Środowiska (GIOŚ) [Chief Inspectorate of Environmental Protection]. 2024. "Baza Danych O Odpadach (BDO) — Waste disposal company registration system." Ministry of Climate and Environment. https://bdo.mos.gov.pl/.
  77. Poland — Sejm RP. 2012. "Act of 14 December 2012 on waste." Dz.U. 2013 item 21 (as amended). https://isap.sejm.gov.pl/isap.nsf/DocDetails.xsp?id=WDU20130000021.
  78. Furr, A. Keith, ed.. 2000. "CRC Handbook of Laboratory Safety." CRC Press.
  79. Pohanish, Richard P.. 2017. "Sittig's Handbook of Toxic and Hazardous Chemicals and Carcinogens." Elsevier.
  80. Lewis, Richard J.. 2012. "Sax's Dangerous Properties of Industrial Materials." Wiley.
  81. NIOSH. 2024. "Pocket Guide to Chemical Hazards." U.S. Department of Health and Human Services. https://www.cdc.gov/niosh/npg/.
  82. OSHA. 2024. "Occupational Chemical Database — Hazardous Waste Operations (HAZWOPER)." Occupational Safety and Health Administration. https://www.osha.gov/chemicaldata.
  83. European Parliament and Council. 2008. "Directive 2008/98/EC on waste (Waste Framework Directive)." Official Journal of the European Union L 312/3. https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX:32008L0098.
  84. European Parliament and Council. 2009. "Regulation (EC) No 1272/2008 (CLP) on classification, labelling and packaging of substances and mixtures." Official Journal of the European Union L 353. https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX:32008R1272.
  85. United Nations Economic Commission for Europe (UNECE). 2023. "European Agreement concerning the International Carriage of Dangerous Goods by Road (ADR 2025)." UNECE. https://unece.org/transport/standards/transport/dangerous-goods/adr-2025.
  86. IPCS INCHEM. 2024. "International Programme on Chemical Safety — Waste Management Guidelines." WHO/UNEP/ILO. https://www.inchem.org/.
  87. European Parliament and Council. 2006. "Regulation (EC) No 1013/2006 on Shipments of Waste." Official Journal of the European Union L 190: 1–98. https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX:32006R1013.
  88. International Council for Harmonisation (ICH). 2000. "Q7 Good Manufacturing Practice Guide for Active Pharmaceutical Ingredients." ICH Expert Working Group. https://database.ich.org/sites/default/files/Q7%20Guideline.pdf.
  89. International Organization for Standardization. 2017. "ISO/IEC 17025:2017 General requirements for the competence of testing and calibration laboratories." ISO. https://www.iso.org/standard/66912.html.
  90. World Health Organization. 2010. "WHO Good Manufacturing Practices for Pharmaceutical Products: Main Principles (WHO Technical Report Series No. 957, Annex 3)." WHO Press. https://www.who.int/publications/m/item/trs957-annex3.
  91. International Council for Harmonisation (ICH). 2003. "ICH Q1A(R2): Stability Testing of New Drug Substances and Products." International Council for Harmonisation. https://database.ich.org/sites/default/files/Q1A%28R2%29%20Guideline.pdf.
  92. International Council for Harmonisation (ICH). 2006. "ICH Q3A(R2): Impurities in New Drug Substances." ICH. https://database.ich.org/sites/default/files/Q3A%28R2%29%20Guideline.pdf.
  93. International Council for Harmonisation (ICH). 1999. "ICH Q6A: Specifications for New Drug Substances and Products." ICH. https://database.ich.org/sites/default/files/Q6A%20Guideline.pdf.
  94. International Council for Harmonisation (ICH). 2008. "ICH Q10: Pharmaceutical Quality System." ICH. https://database.ich.org/sites/default/files/Q10%20Guideline.pdf.
  95. U.S. Food and Drug Administration. 2024. "21 CFR Part 211: Current Good Manufacturing Practice for Finished Pharmaceuticals." US Code of Federal Regulations. https://www.ecfr.gov/current/title-21/chapter-I/subchapter-C/part-211.
  96. European Medicines Agency. 2014. "Guideline on Process Validation for Finished Products — Information and Data to Be Provided EMA/CHMP/CVMP/QWP/BWP/70278/2012." European Medicines Agency. https://www.ema.europa.eu/en/documents/scientific-guideline/guideline-process-validation-finished-products-information-data-be-provided-regulatory-submissions-revision-1_en.pdf.
  97. United States Pharmacopeial Convention. 2024. "United States Pharmacopeia and National Formulary, USP 47-NF 42." USP. https://www.uspnf.com/.
  98. European Pharmacopoeia Commission. 2024. "European Pharmacopoeia 11th Edition." Council of Europe — EDQM. https://www.edqm.eu/en/european-pharmacopoeia-ph-eur-11th-edition.
  99. Pharmaceutical Inspection Co-operation Scheme (PIC/S). 2021. "Guide to Good Manufacturing Practice for Medicinal Products PE 009-15." PIC/S Secretariat, Geneva. https://picscheme.org/en/publications.
  100. International Pharmaceutical Excipients Council (IPEC) and Pharmaceutical Quality Group (PQG). 2017. "Joint IPEC-PQG Good Manufacturing Practices Guide for Pharmaceutical Excipients." IPEC-Americas. https://ipecamericas.org/sites/default/files/IPECPQGGMPGuide2017.pdf.
📥 Download BibTeX📥 Download RISImport into Zotero/Mendeley/EndNote/Papers.
—
